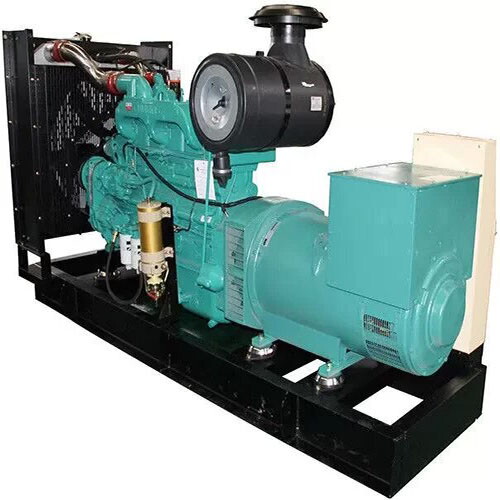

400kW Diesel Generator, Cummins KTA19-G3A, Stamford S5L1D-D41
Key Specifications / Features
Model No.: GGS-240402-DGS-06
Hits: 18
Crafted for reliability, this 50Hz diesel generator is engineered with a Cummins KTA19-G3A engine, featuring 6 cylinders and offering a prime power output of 400kW and 500kVA. Equipped with a Stamford S5L1D-D41 alternator, this generator ensures steady performance for diverse industrial applications, while its water-cooled design enhances efficiency and durability.
Request a quote
Tags
Detail Information
Product Name: 400kW Diesel Generator
Model: GGS-500-C
Frequency: 50Hz
Prime Power: 400kW, 500kVA
Standby Power: 450kW, 563kVA
Rated Voltage: 400V, 230V
Displacement: 19 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 13.9:1
Engine: Cummins KTA19-G3A, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford S5L1D-D41, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-500-C |
| Frequency | 50Hz |
| Prime Power | 400kW/500kVA |
| Standby Power | 450kW/563kVA |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 3452 x 1360 x 2131 |
| Weight | 4218 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA19-G3A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | S5L1D-D41 |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
