1000kW Natural Gas Generator, Perkins 4016-61TRS2, 4 Stroke
Key Specifications / Features
Model no.: GGS-240401-GGS-02
Hits: 40

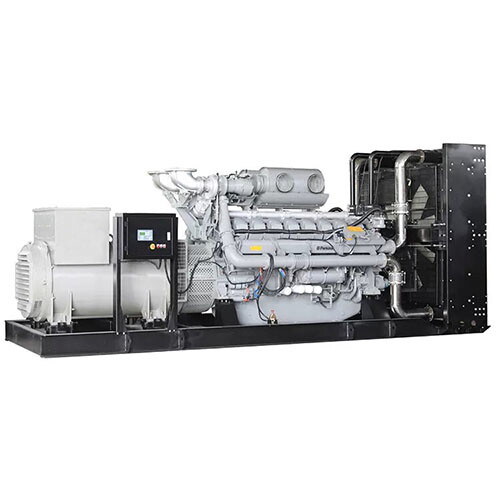

Presenting a top-of-the-line 4 Stroke Natural Gas Generator crafted to deliver remarkable performance, boasting a rated power of 1000kW and 1250kVA. This powerhouse is driven by the formidable Perkins 4016-61TRS2 Engine, featuring 16 cylinders of raw energy. Paired with the reliable Stamford S6L1D-G4 Alternator, this generator promises unmatched reliability and efficiency for your most demanding power needs.
Request a quote
Tags
Detail Information
Product Name: 1000kW Natural Gas Generator
Model: GGS-1250-P
Frequency: 50Hz
Fuel Type: Natural Gas
Rated Power: 1000kW, 1250kVA
Rated Voltage: 400V, 230V
Displacement: 61 L
Bore x Stroke: 160 x 190 mm
Compression Ratio: 12:1
Engine: Perkins 4016-61TRS2, 4 Stroke, 16 Cylinder V Type
Alternator: Stamford S6L1D-G4, Brushless, Self-excited
Other Feature: 3 Phase, Closed Cycle Cooling, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1250-P |
| Frequency | 50Hz |
| Rated Power | 1000kW/1250kVA |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 5560 x 2600 x 2960 |
| Gross Weight (KG) | 11998 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4016-61TRS2 |
| Fuel Type | Natural Gas |
| Cooling System | Closed Cycle Cooling |
| Aspiration | Turbocharged |
| Number of Cylinders | 16 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 61 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 12:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | S6L1D-G4 |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
