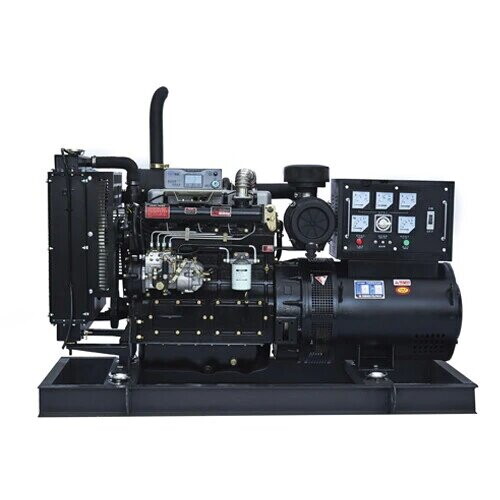

20kW Diesel Generator, Perkins 404D-22TG, 3 Phase, 4 Cylinder
Key Specifications / Features
Model no.: GGS-240407-DGS-10
Hits: 25
Introducing our versatile 3-phase diesel generator, featuring a Perkins 404D-22TG engine, offering a prime power of 20 kW and 25 kVA. With its robust 4-cylinder, 4-stroke design and Stamford PI144E alternator, this generator provides reliable performance for various applications. Designed for efficiency and durability, it's an ideal choice for your power generation needs.
Request a quote
Tags
Detail Information
Product Name: 20kW 25kVA Diesel Generator
Model: GGS-25-P
Frequency: 50Hz
Prime Power: 20kW, 25kVA
Standby Power: 22kW, 28kVA
Rated Voltage: 230V, 400V
Displacement: 2.216 L
Bore x Stroke: 84 x 100 mm
Compression Ratio: 23.3:1
Engine: Perkins 404D-22TG, 4 Stroke, 4 Cylinder, Vertical in Line
Alternator: Stamford PI144E
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-25-P |
| Frequency | 50Hz |
| Prime Power | 20kW/25kVA |
| Standby Power | 22kW/28kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 1510 x 750 x 1120 |
| Gross Weight (KG) | 780 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 404D-22TG |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 2.216 L |
| Bore x Stroke | 84 x 100 mm |
| Compression Ratio | 23.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI144E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
20 kW Diesel Generator Components
Introducing our 20 kW Diesel Generator, engineered in Canada to meet demanding customer needs. This generator combines high-performance clean diesel power with a compact, quieter design, making it ideal for home, commercial, and off-grid applications.

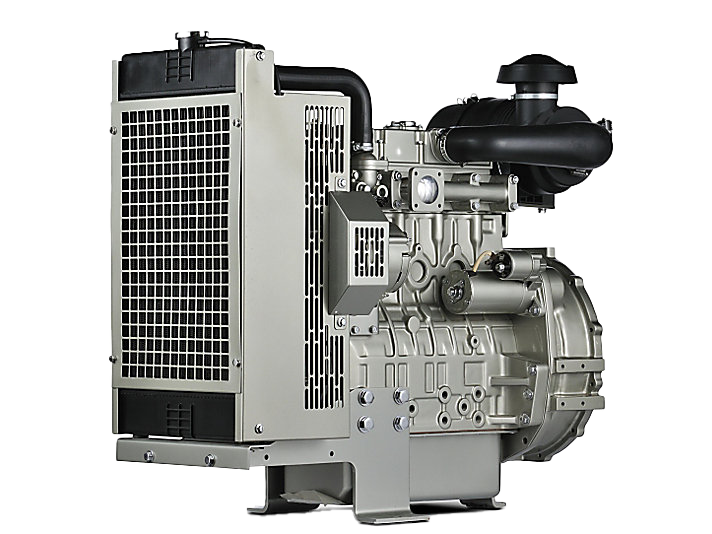

1. Powerful Perkins Engine
Model: Perkins 404D-22TG
Known for reliability and long life, this compact engine offers low fuel consumption and easy starts. Reduced maintenance is a key benefit, requiring fewer air and oil filter changes, with oil changes recommended every 500 hours.
2. Reliable Alternator
Equipped with an industrial-class alternator, designed for harsh conditions and stable power output, electronically regulated to within 1% precision. The brushless design ensures maintenance-free operation.
3. Integrated Fuel Tank
Features a large-capacity fuel tank built into the base frame, with an easy-to-read fuel level indicator and 304/316 stainless steel electronic sensor for accurate monitoring. An in-tank fuel filter provides dual filtration for enhanced fuel quality.
4. Advanced Controller
User-friendly instrumentation offers 150 event logging, fuel level display, alarms, and maintenance reminders. Built to endure extreme shock and vibration, the controller allows for manual or automatic operation with optional Automatic Transfer Switch or wireless remote control.
The 20 kW Diesel Generator delivers dependable power and innovative engineering, making it the perfect solution for backup or continuous operation. Enjoy the reliability and efficiency you need for all your power requirements.
