45kVA Diesel Generator, Cummins 4BT3.9-G2, 60Hz, Three Phase
Key Specifications / Features
Model no.: GGS-240407-DGS-08
Hits: 10

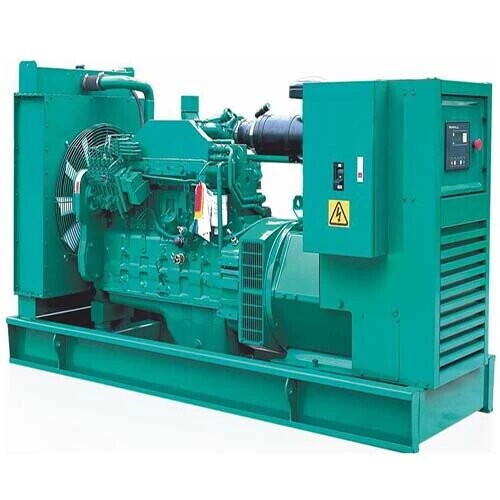

Introducing our three-phase diesel generator, designed for reliable performance with a prime power output of 36 kW and 45 kVA. Powered by a robust Cummins 4BT3.9-G2 engine, this generator ensures efficiency and durability. Paired with a Stamford PI144J alternator, it delivers stable power output. With water cooling technology, it's ideal for various applications requiring continuous power supply.
Request a quote
Tags
Detail Information
Product Name: 45kVA Diesel Generator
Model: GGS-45-C
Frequency: 60Hz
Prime Power: 36kW, 45kVA
Standby Power: 40kW, 50kVA
Rated Voltage: 127V, 220V
Displacement:3.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 18.0:1
Engine: Cummins 4BT3.9-G2, 4 Stroke, 4 Cylinder, Vertical in Line
Alternator: Stamford PI144J
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-45-C |
| Frequency | 60Hz |
| Prime Power | 36kW/45kVA |
| Standby Power | 40kW/50kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 1660 x 730 x 1285 |
| Gross Weight (KG) | 700 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 4BT3.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 4 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 18.0:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI144J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
