350kW 438kVA Diesel Generator, 60Hz, Cummins KTA19-G2, 3 Phase
Key Specifications / Features
Model No.: GGS-240325-DGS-08
Hits: 17

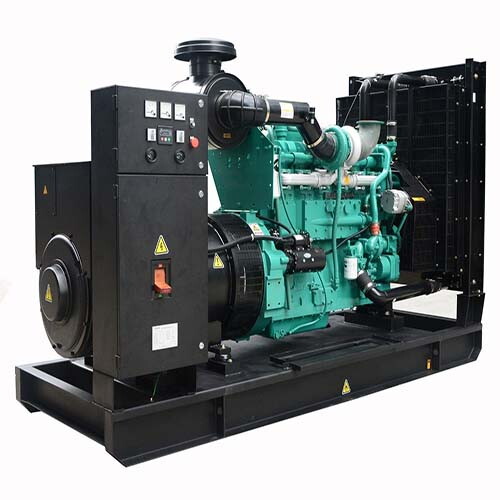

Introducing our diesel generator supplying 350 kW (438 kVA) of power at 60Hz. Powered by the Cummins KTA19-G2 engine, featuring a 4-stroke, 6-cylinder in-line design, and paired with a Stamford UCI444E alternator, this generator ensures reliable performance. With efficient water cooling and 3-phase configuration, trust in our generator for consistent power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 350kW 438kVA Diesel Generator
Model: GGS-438-C
Prime Power: 350kW, 438kVA
Frequency: 60Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTA19-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI444E
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-438-C |
| Frequency | 60Hz |
| Prime Power | 350kW/438kVA |
| Standby Power | 400kW/500kVA |
| Rated Voltage | 240V |
| Dimension (L x W x H) (mm) | 3315 x 1100 x 1650 |
| Gross Weight (KG) | 3750 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA19-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Combustion System | Direct Injection |
| Cycle | 4 Stroke |
| Displacement | 18.9 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1800 RPM |
| Start Mode | Electric |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI444E |
| Excitation system | Single Bearing, Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
