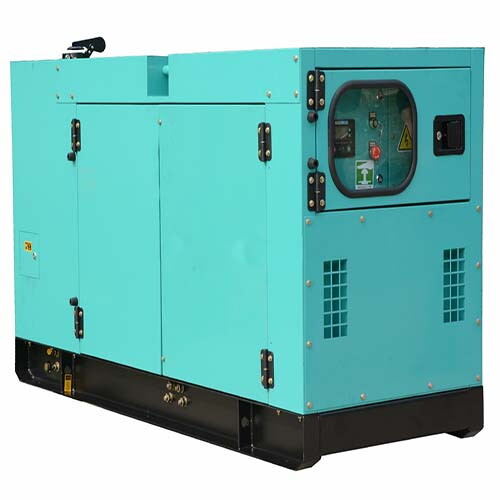

108kW Diesel Generator, Perkins 1106A-70TG1, 50Hz, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240325-DGS-09
hits: 2
Introducing our 6-cylinder diesel generator, featuring the Perkins 1106A-70TG1 engine and Stamford UCI274E alternator. This generator offers a prime power output of 108 kW (135 kVA), ensuring reliable performance in various applications. Trust in our generator for dependable power supply wherever it's needed.
Request a quote
Tags
Detail Information
Product Name: 108kW Diesel Generator
Model: GGS-135-P
Prime Power: 108kW, 135kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Perkins 1106A-70TG1
Engine Type: 4 Stroke, 6 Cylinder Vertical in Line
Alternator Model: Stamford UCI274E
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-80-P |
| Frequency | 50Hz |
| Prime Power | 64kW/80kVA |
| Standby Power | 70.4kW/88kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2500 × 1080 × 1500 |
| Gross Weight (KG) | 1500 |
| Noise Level | 70dBA at 7 Meters |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1104A-44TG2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Number of Cylinders | 4 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 4.4 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 17.25:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Leroy Somer |
| Alternator Model | TAL-A44-C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
