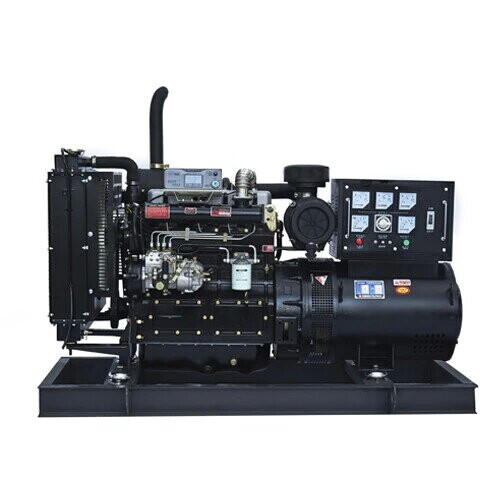

28kW Diesel Generator, 60Hz, Perkins 1103A-33G, 3 Cylinder
Key Specifications / Features
Model no.: GGS-240407-DGS-09
Hits: 9
Introducing our compact and efficient 3-cylinder diesel generator, delivering a prime power output of 28 kW and 35 kVA. Powered by the reliable Perkins 1103A-33G engine and paired with a Stamford PI144G alternator, this generator ensures consistent performance. Whether for backup power or continuous operation, it's designed to meet your power needs with reliability and efficiency.
Request a quote
Tags
Detail Information
Product Name: 28kW 35kVA Diesel Generator
Model: GGS-35-P
Frequency: 60Hz
Prime Power: 28kW, 35kVA
Standby Power: 31kW, 39kVA
Rated Voltage: 127V, 220V
Displacement: 3.3 L
Bore x Stroke: 105 x 127 mm
Compression Ratio: 18.0:1
Engine: Perkins 1103A-33G, 4 Stroke, 3 Cylinder, Vertical in Line
Alternator: Stamford PI144G
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-35-P |
| Frequency | 60Hz |
| Prime Power | 28kW/35kVA |
| Standby Power | 31kW/39kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 1650 x 750 x 1180 |
| Gross Weight (KG) | 780 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1103A-33G |
| Cooling System | Water Cooled |
| Aspiration | Naturally Aspirated |
| Number of Cylinders | 3 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 3.3 L |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 19.25:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI144G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
Perkins 1103A-33G Engine Features
1. Efficiency and Compact Design
The Perkins 1103A-33G engine features a new 3.3-liter block design that maintains bore roundness under pressure, which not only ensures efficient combustion but also reduces combustion and mechanical noise. This compact design allows for high power output in a smaller footprint, making it ideal for applications where space is at a premium.
2. Reliability and Durability
With robust construction and high-quality components, the 1103A-33G is engineered for long-term reliability and endurance. The engine's design and Class A manufacturing enhancements uphold Perkins' reputation for durability, ensuring consistent performance and a long service life even under demanding conditions.
3. Cost-Effective Power:
The Perkins 1103A-33G offers a cost-effective solution with its low fuel and oil consumption rates, coupled with extended service intervals of up to 500 hours. These features significantly reduce the operational and maintenance costs, providing a more economical power option for customers. Additionally, Perkins provides a two-year warranty on the engine, further mitigating ownership costs.
