3 Cylinder Diesel Generator, 14kW 18kVA, 60Hz, Perkins Powered

Key Specifications / Features

Model No.: GGS-240311-DGS-04
Hits: 3

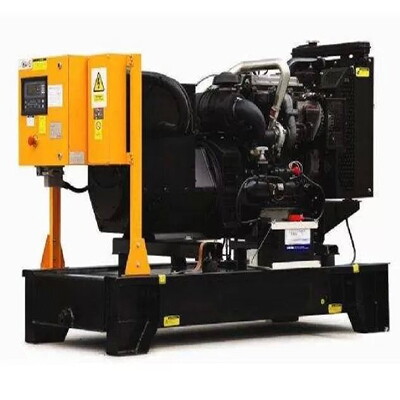

Introducing the 3 Cylinder Diesel Generator Plant, powered by Perkins for reliable performance. Operating at 60Hz, it delivers 14kW power (18kVA) with a voltage of 220/127V, suitable for diverse applications. This water-cooled generator features a durable 4-stroke engine and a brushless, self-excited alternator. Its 3-phase, 4-wire configuration ensures seamless integration into various electrical systems. Trust in this generator for dependable power generation in both residential and commercial settings.
Request a quote

Detail Information


Product Name: 3 Cylinder Diesel Generator
Model: GGS-18-P
Engine Brand: Perkins
Frequency: 60Hz
Prime Power: 14kW / 18kVA
Rated Voltage: 220/127V
Rated Current: 45.9A
Engine Type: Water Cooled, 3 Cylinder, 4 Stroke
Alternator Type: Brushless, Self-Excited, 3 Phase & 4 Wire
Net Weight: 695 KG
Dimension (L x W x H): 1900 x 860 x 1020 mm

Technical Data

Generator Specification
Generator Model GGS-18-P
Frequency 60Hz
Prime Power 14kW/18kVA
Standby Power 16kW/20kVA
Rated Voltage 220/127V
Rated Current 45.9A
Type Silent
Dimension (L x W x H) (mm) 1900 x 860 x 1020
Net Weight (KG) 695
Engine Specification
Engine Brand Perkins
Model 403A-15G2
Cooling System Water Cooled
Aspiration Natural Aspiration
Fuel System Direct Inject
Number of Cylinders 3 Cylinder In Line
Cycle 4 Stroke
Starting Method Electric Start
Displacement 1.496 L
Bore x Stroke 84 x 90 mm
Compression Ratio 22.5:1
Rated Speed 1800rpm
Rated Power (With Fan) 16kW
Governor Type Mechanical
Alternator Specification
Alternator Brand Stamford PI044G
Exciter Type Brushless, Self-Excitation
Phase 3
Voltage 220/127V
Wiring Type 3 Phase & 4 Wire, Y Type
Power Factor 0.8
Prime Power 14.1 kW
Protection Grade IP23
Insulation Grade Class H
