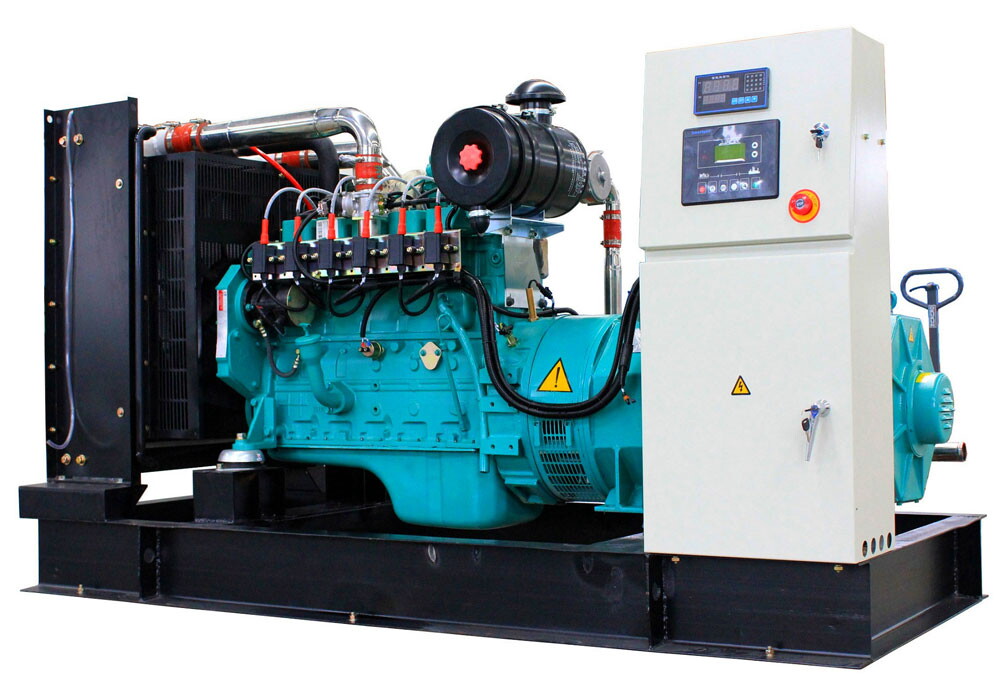

100kW 125kVA Natural Gas Generator, 50Hz, 3 Phase, 6 Cylinder

Key Specifications / Features

Model no.: GGS-240313-GGS-06
Hits: 30
Introducing our quality Natural Gas Generator, providing a rated power of 100kW (125kVA) at 50Hz frequency. Powered by a robust 6 Cylinder engine, this generator is designed to meet your power needs with reliability. Featuring a 3 Phase 4 Wire configuration, it ensures versatile compatibility with various electrical systems. Trust in our generator for dependable and efficient performance.
Request a quote

Detail Information


Product Name: 100kW 125kVA Natural Gas Generator
Model: GGS-100-C
Engine Brand: Cummins
Gas Type: Natural Gas
Rated Power: 100kW, 125kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 201A
Engine Type: 6 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 2400 x 1100 x 1600 mm


Technical Data


Generator Specification
Generator Set Model GGS-100-C
Rated Power 100 kW / 125 kVA
Rated Speed/Rated Frequency 1500 rpm/50Hz
Rated Voltage 400/230V
Power Factor 0.8
Phase/Wire 3 Phase/4 Wire
Rated Current 201 A
Gas Type Natural Gas
Overall Size  2400 x 1100 x 1600 mm
Weight 1850 kg
Engine Specification
Engine Model Cummins 6CTA8.3
Air Intake Way Turbo Intercooled
Cooling Way Closed Cooling Cycle
Cylinder 6
Displacement  8.3 L
Bore × Stroke 114 x 135 mm
Max. standby Power @50Hz 120 kW / 150 kVA
Alternator Specification
Alternator Model STAMFORD UCI274E
Excitation way Brushless and Self-excited
Voltage control AVR
Insulation Class H
Protection IP23
