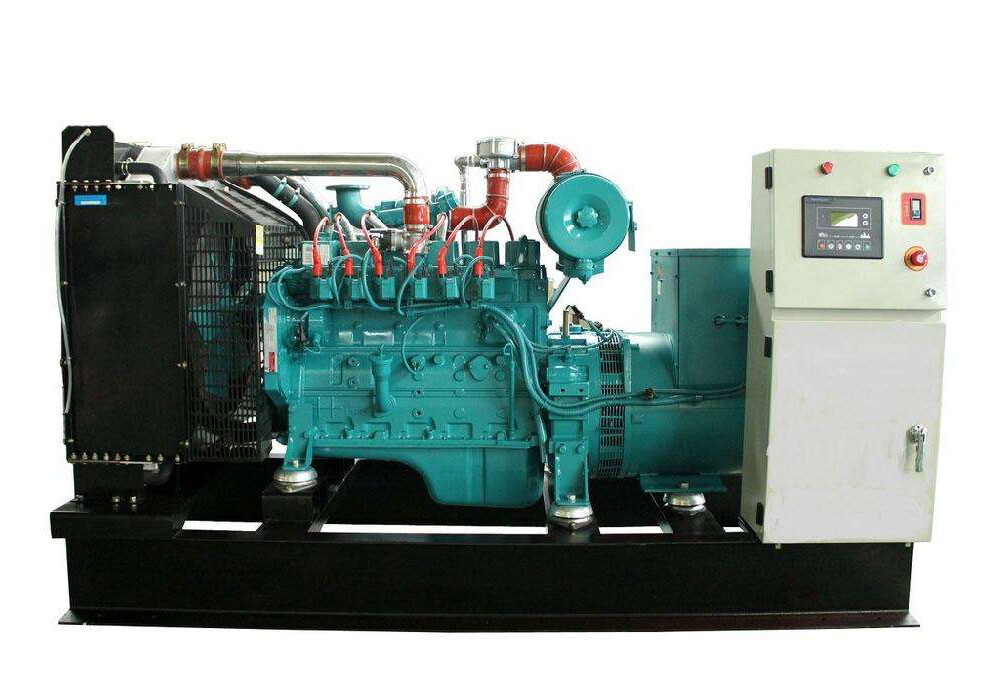

3 Phase Natural Gas Generator, 400kW 500kVA, 50Hz, 12 Cylinder
Key Specifications / Features
Model no.: GGS-240313-GGS-03
hits: 0
Introducing our premium 3 Phase Natural Gas Generator, designed to meet your power demands with a rated power of 400kW (500kVA). Equipped with a robust 12 Cylinder Cummins engine, this generator operates at 50Hz, ensuring reliable performance. With a current rating of 720A and a brushless, self-excited alternator, it guarantees stable and efficient power generation for your applications. Trust in our generator for dependable electricity supply.
Request a quote
Tags
Detail Information
Product Name: 3 Phase Natural Gas Generator
Model: GGS-400-C
Engine Brand: Cummins
Gas Type: Natural Gas
Rated Power: 400kW, 500kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 720A
Engine Type: 12 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 4510 x 1850 x 2400 mm
Technical Data
| Generator Specification | |
| Generator Set Model | GGS-400-C |
| Rated Power | 400 kW / 500 kVA |
| Rated Speed/Rated Frequency | 1500 rpm/50Hz |
| Rated Voltage | 400/230V |
| Power Factor | 0.8 |
| Phase/Wire | 3 Phase/4 Wire |
| Rated Current | 720 A |
| Gas Type | Natural Gas |
| Overall Size | 4510 x 1850 x 2400 mm |
| Weight | 8450 kg |
| Engine Specification | |
| Engine Model | Cummins KTA38 |
| Air Intake Way | Turbo Intercooled |
| Cooling Way | Closed Cooling Cycle |
| Cylinder | 12 |
| Displacement | 38 L |
| Bore × Stroke | 159 x 159 mm |
| Max. standby Power @50Hz | 440 kW / 550 kVA |
| Alternator Specification | |
| Alternator Model | STAMFORD HCI544C |
| Excitation way | Brushless and Self-excited |
| Voltage control | AVR |
| Insulation Class | H |
| Protection | IP23 |
