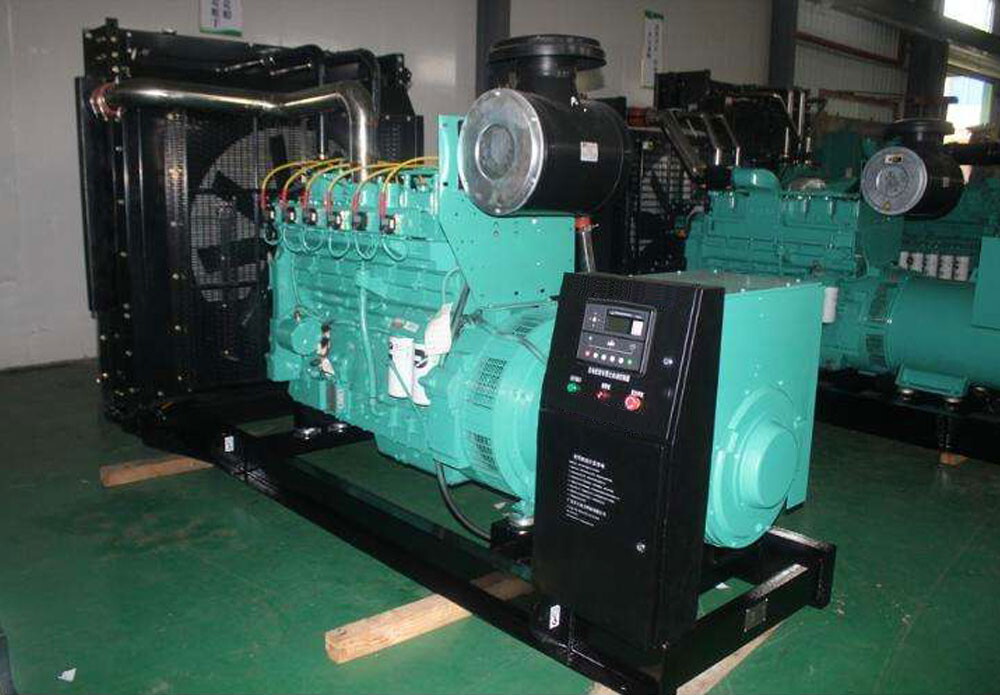

12 Cylinder Natural Gas Generator, 500kW 625kVA, 50Hz, Cummins
Key Specifications / Features
Model no.: GGS-240313-GGS-01
hits: 0
Introducing our high-performance 12 Cylinder Natural Gas Generator, delivering a robust rated power of 500kW (625kVA). Powered by a reliable Cummins engine, this generator operates at 50Hz frequency and features a 3 Phase 4 Wire configuration. Explore dependable power for your diverse needs.
Request a quote
Tags
Detail Information
Product Name: 12 Cylinder Natural Gas Generator
Model: GGS-500-C
Engine Brand: Cummins
Gas Type: Natural Gas
Rated Power: 500kW, 625kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 900A
Engine Type: 12 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 4510 x 1850 x 2400 mm
Technical Data
| Generator Specification | |
| Generator Set Model | GGS-500-C |
| Rated Power | 500 kW / 625 kVA |
| Rated Speed/Rated Frequency | 1500 rpm/50Hz |
| Rated Voltage | 400/230V |
| Power Factor | 0.8 |
| Phase/Wire | 3 Phase/4 Wire |
| Rated Current | 900 A |
| Gas Type | Natural Gas |
| Overall Size | 4510 x 1850 x 2400 mm |
| Weight | 8800 kg |
| Engine Specification | |
| Engine Model | Cummins KTA38 |
| Air Intake Way | Turbo Intercooled |
| Cooling Way | Closed Cooling Cycle |
| Cylinder | 12 |
| Displacement | 38 L |
| Bore × Stroke | 159 x 159 mm |
| Max. standby Power @50Hz | 550 kW / 687.5 kVA |
| Alternator Specification | |
| Alternator Model | STAMFORD HCI544FS |
| Excitation way | Brushless and Self-excited |
| Voltage control | AVR |
| Insulation Class | H |
| Protection | IP23 |
