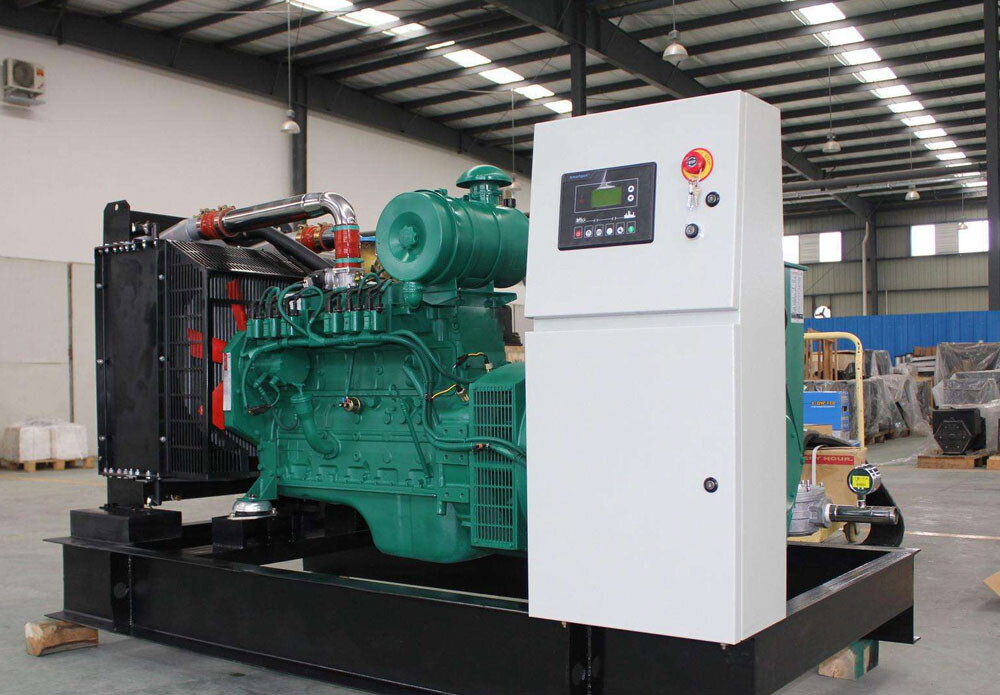

6 Cylinder Natural Gas Generator, 200kW 250kVA, 50Hz, Cummins
Key Specifications / Features
Model no.: GGS-240313-GGS-04
Hits: 2
Introducing our 6 Cylinder Natural Gas Generator, powered by a reliable Cummins engine. Operating at 50Hz, it boasts a rated power output of 200kW (250kVA) and features a 3 Phase 4 Wire configuration. Equipped with a brushless and self-excited alternator, this generator ensures stable and efficient power generation for your needs. Trust in its performance for dependable electricity supply.
Request a quote
Tags
Detail Information
Product Name: 6 Cylinder Natural Gas Generator
Model: GGS-200-C
Engine Brand: Cummins
Gas Type: Natural Gas
Rated Power: 200kW, 250kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 360A
Engine Type: 6 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 3250 x 1160 x 1900 mm
Technical Data
| Generator Specification | |
| Generator Set Model | GGS-200-C |
| Rated Power | 200 kW / 250 kVA |
| Rated Speed/Rated Frequency | 1500 rpm/50Hz |
| Rated Voltage | 400/230V |
| Power Factor | 0.8 |
| Phase/Wire | 3 Phase/4 Wire |
| Rated Current | 360 A |
| Gas Type | Natural Gas |
| Overall Size | 3250 x 1160 x 1900 mm |
| Weight | 3700 kg |
| Engine Specification | |
| Engine Model | Cummins NTAA855 |
| Air Intake Way | Turbo Intercooled |
| Cooling Way | Closed Cooling Cycle |
| Cylinder | 6 |
| Displacement | 14 L |
| Bore × Stroke | 140 x 152 mm |
| Max. standby Power @50Hz | 220 kW / 275 kVA |
| Alternator Specification | |
| Alternator Model | STAMFORD UCD274K |
| Excitation way | Brushless and Self-excited |
| Voltage control | AVR |
| Insulation Class | H |
| Protection | IP23 |
