80kW 100kVA Natural Gas Generator, Cummins Engine, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240313-GGS-05
Hits: 0

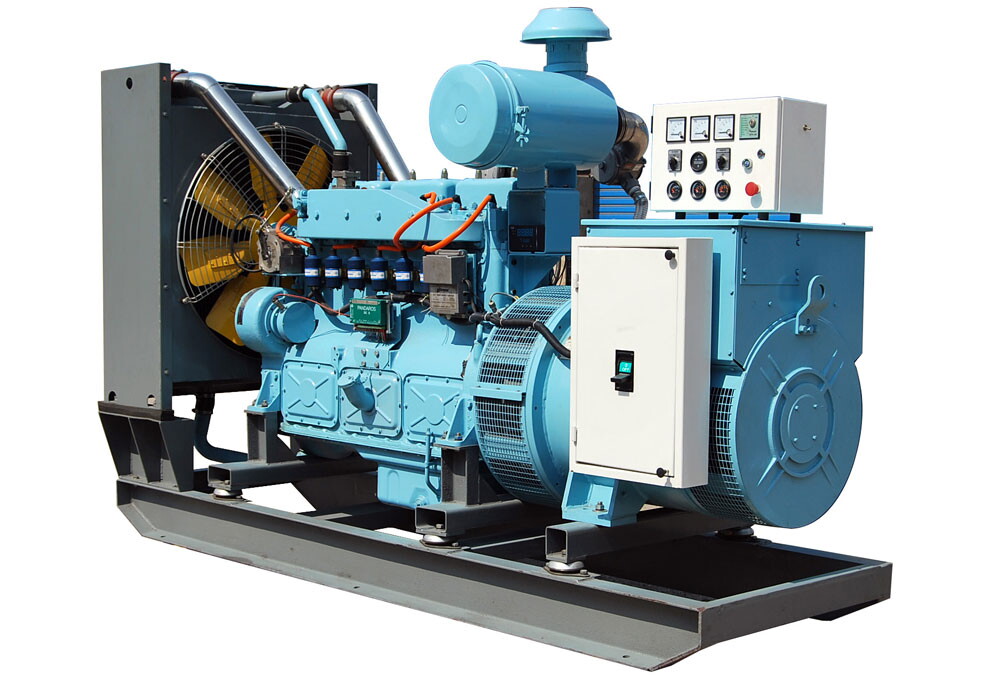

Introducing our powerful Natural Gas Generator, delivering a rated power of 80kW (100kVA). Equipped with a robust 6 Cylinder Cummins engine, this generator ensures reliable performance. Featuring a brushless alternator, it guarantees stable power generation for your needs.
Request a quote
Tags
Detail Information
Product Name: 80kW 100kVA Natural Gas Generator
Model: GGS-80-C
Engine Brand: Cummins
Gas Type: Natural Gas
Rated Power: 80kW, 100kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 144A
Engine Type: 6 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 2200 x 1000 x 1400 mm
Technical Data
| Generator Specification | |
| Generator Set Model | GGS-80-C |
| Rated Power | 80 kW / 100 kVA |
| Rated Speed/Rated Frequency | 1500 rpm/50Hz |
| Rated Voltage | 400/230V |
| Power Factor | 0.8 |
| Phase/Wire | 3 Phase/4 Wire |
| Rated Current | 144 A |
| Gas Type | Natural Gas |
| Overall Size | 2200 x 1000 x 1400 mm |
| Weight | 1400 kg |
| Engine Specification | |
| Engine Model | Cummins 6BTAA5.9 |
| Air Intake Way | Turbo Intercooled |
| Cooling Way | Closed Cooling Cycle |
| Cylinder | 6 |
| Displacement | 5.9 L |
| Bore × Stroke | 102 x 120 mm |
| Max. standby Power @50Hz | 90 kW / 112.5 kVA |
| Alternator Specification | |
| Alternator Model | STAMFORD UCI274C |
| Excitation way | Brushless and Self-excited |
| Voltage control | AVR |
| Insulation Class | H |
| Protection | IP23 |
