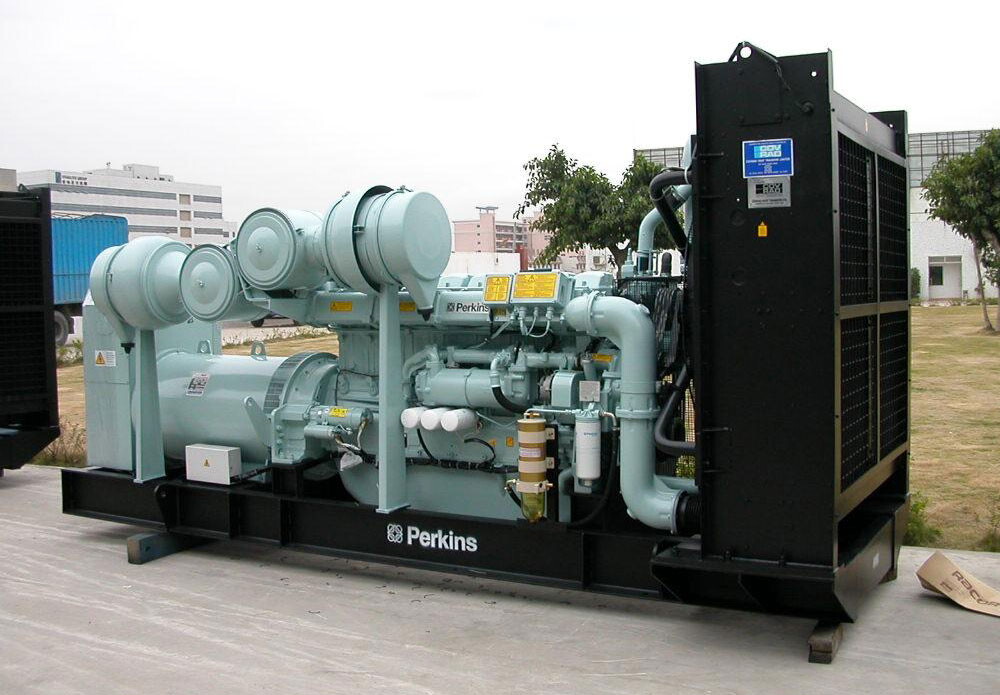

375kW 469kVA Natural Gas Generator, 50Hz, 6 Cylinder, Perkins
Key Specifications / Features
Model No.: GGS-240313-GGS-01
Hits: 16
Introducing our quality Natural Gas Generator, engineered for reliable power with a rated output of 375kW (469kVA). Operating at 50Hz frequency, this generator is powered by a robust 6-cylinder Perkins engine. Explore a dependable source of energy for your diverse power needs.
Request a quote
Tags
Detail Information
Product Name: 375kW 469kVA Natural Gas Generator
Model: GGS-375-P
Engine Brand: Perkins
Gas Type: Natural Gas
Rated Power: 375kW, 469kVA
Frequency: 50Hz
Rated Voltage: 230V, 400V
Rated Current: 675A
Engine Type: 6 Cylinder
Alternator Type: Brushless and Self-excited
Phase/Wire: 3 Phase, 4 Wire
Overall Size (L x W x H): 3780 x 1720 x 2220 mm
Technical Data
| Generator Specification | |
| Generator Set Model | GGS-375-P |
| Rated Power | 375 kW / 469 kVA |
| Rated Speed/Rated Frequency | 1500 rpm /50Hz |
| Rated Voltage | 400/230V |
| Power Factor | 0.8 |
| Phase/Wire | 3 Phase/4 Wire |
| Rated Current | 675 A |
| Gas Type | Natural Gas |
| Overall Size (L x W x H) | 3780 x 1720 x 2220 mm |
| Weight | 5138 kg |
| Engine Specification | |
| Engine Model | Perkins 4006-23TRS2 |
| Air Intake Way | Turbo Intercooled |
| Cooling Way | Closed Cooling Cycle |
| Cylinder | 6 |
| Displacement | 22.92 L |
| Bore × Stroke | 160 x 190 mm |
| Max. standby power @50Hz | 412.5kw / 516kva |
| Alternator Specification | |
| Alternator Model | STAMFORD HCI544C |
| Excitation way | Brushless and Self-excited |
| Voltage control | AVR |
| Insulation Class | H |
| Protection | IP23 |
