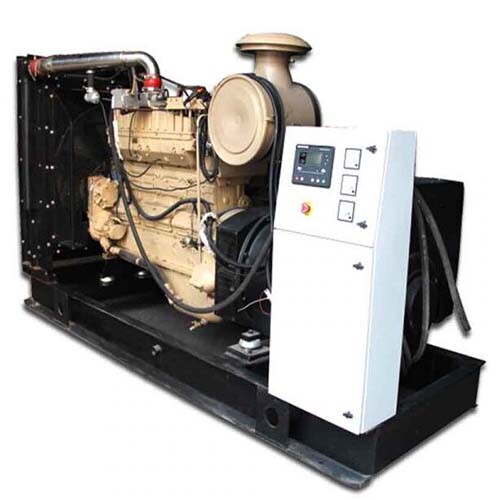

300kW Natural Gas Generator, Cummins GTA19-G2, 50Hz, 3 Phase
Key Specifications / Features
Model No.: GGS-240325-GGS-01
Hits: 19
Introducing our 3-phase natural gas generator, delivering a prime power output of 300 kW and 375 kVA. Powered by a 6-cylinder Cummins GTA19-G2 engine and featuring a water cooling system, this generator ensures reliable performance in diverse applications. Trust in our generator for efficient and dependable power supply tailored to your needs.
Request a quote
Tags
Detail Information
Product Name: 300kW Natural Gas Generator
Model: GGS-375-C
Prime Power: 300kW, 375kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins GTA19-G2
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator: Stamford/Marathon/Mecc Altea
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-375-C |
| Frequency | 50Hz |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/412.5kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 3200 × 1350 × 1800 |
| Gross Weight (KG) | 3800 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | GTA19-G2 |
| Cooling System | Water Cooled |
| Aspiration | Naturally Aspirated |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electric |
| Alternator Specification | |
| Alternator Brand | Stamford/Marathon/Mecc Altea |
| Excitation system | Brushless with AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
