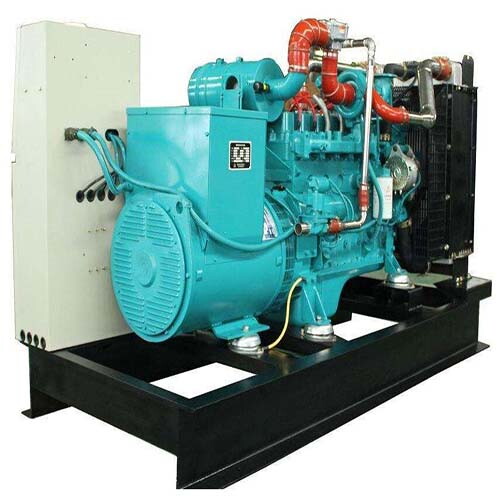

280kW 350kVA LPG Generator, 6 Cylinder, Cummins Engine, 50Hz
Key Specifications / Features
Model No.: GGS-240322-GGS-03
Hits: 16
Introducing our quality LPG generator, delivering a rated power of 280 kW and 350 kVA. This generator is driven by a Cummins engine featuring a 4-stroke, 6-cylinder configuration, ensuring reliable performance. With efficient water cooling, trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 280kW 350kVA LPG Generator
Model: GGS-350-C
Fuel: LPG
Rated Power: 280kW, 350kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTAA19
Engine Type: 4 Stroke, 6 Cylinder
Alternator Model: Stamford HCI444E
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-350-C |
| Frequency | 50Hz |
| Rated Power | 280kW/350kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 504A |
| Fuel | LPG (Propane) |
| Dimension (L x W x H) (mm) | 3800 × 1550 × 2000 |
| Gross Weight (KG) | 3950 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTAA19 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 6 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Rated Speed | 1500 RPM |
| Max. Standby Power | 308kW/385kVA |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444E |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
