4 Stroke LPG Generator, 240kW 300kVA, 3 Phase, Cummins Engine
Key Specifications / Features
Model No.: GGS-240322-GGS-01
Hits: 24

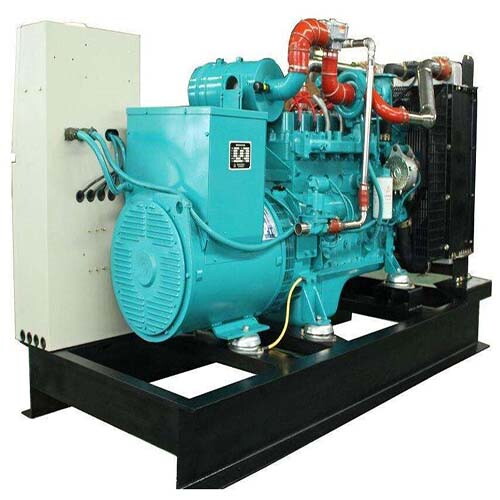

Introducing our 4 Stroke LPG Generator, offering a rated power of 240 kW and 300 kVA. This generator is powered by a 6-cylinder Cummins engine and features a brushless, self-excited alternator. Trust in our generator for reliable and efficient power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 4 Stroke LPG Generator
Model: GGS-300-C
Fuel: LPG
Rated Power: 240kW, 300kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTAA19
Engine Type: 4 Stroke, 6 Cylinder
Alternator Model: Stamford HCI444D
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-300-C |
| Frequency | 50Hz |
| Rated Power | 240kW/300kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 432A |
| Fuel | LPG |
| Dimension (L x W x H) (mm) | 3800 × 1550 × 2000 |
| Gross Weight (KG) | 3850 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTAA19 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 6 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 19 L |
| Bore x Stroke | 159 x 159 mm |
| Rated Speed | 1500 RPM |
| Max. Standby Power | 264kW/330kVA |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444D |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
