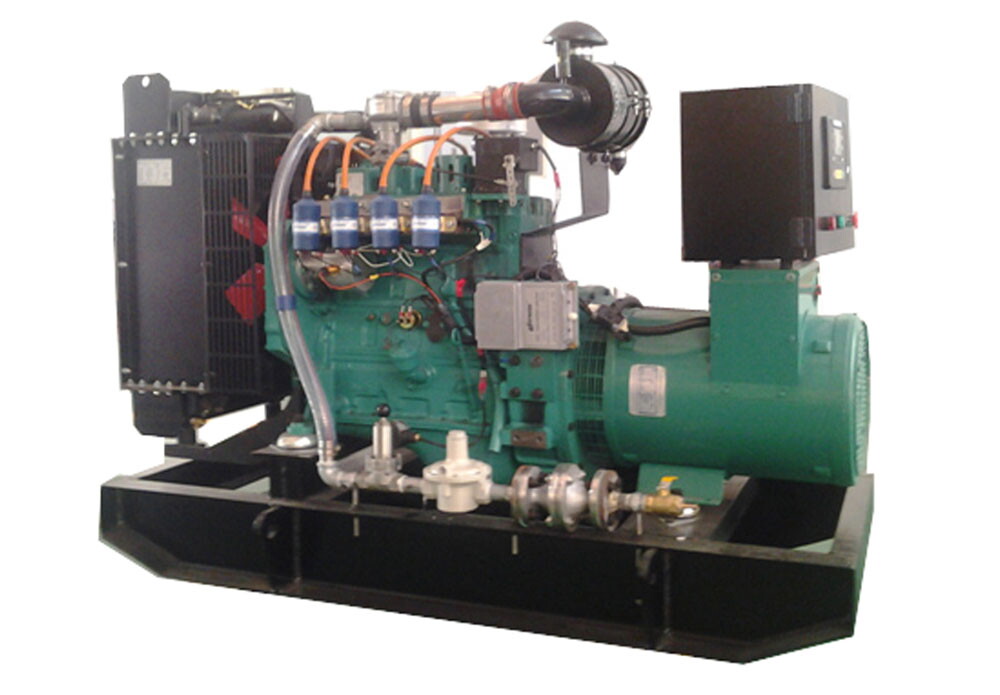

3 Phase LPG Generator, 40kW 50kVA, Cummins Engine, 4 Cylinder
Key Specifications / Features
Model no.: GGS-240320-NGS-02
Hits: 1
Introducing our 3 Phase LPG Generator, operating at 50Hz with a prime power of 40kW (50kVA). Powered by a reliable Cummins engine with a 4-stroke, 4-cylinder design, this generator ensures efficient operation. Featuring a closed-cycle cooling system, it maintains optimal temperatures for extended use. With a 3-phase, 4-wire configuration, it's suitable for various electrical setups. Trust in our generator for dependable power supply in LPG applications.
Request a quote
Tags
Detail Information
Product Name: 3 Phase LPG Generator
Model: GGS-50-C
Fuel: LPG
Frequency: 50Hz
Prime Power: 40kW, 50kVA
Rated Current: 72A
Rated Voltage: 400V, 230V
Cooling System: Closed Cycle Cooling
Engine Model: Cummins 4BTA3.9
Engine Type: 4 Stroke, 4 Cylinder
Alternator Type: Brushless, Self-excited, AVR
Phase/Wire: 3 Phase, 4 Wire
Technical Data
| Generator Specification | |
| Generator Model | GGS-50-C |
| Frequency | 50Hz |
| Rated Power | 40kW / 50kVA |
| Rated Current | 72A |
| Rated Voltage | 400/230V |
| Fuel | LPG |
| Dimension (L x W x H) (mm) | 1850 x 1000 x 1350 |
| Net Weight (KG) | 980 |
| Engine Specification | |
| Engine Model | Cummins 4BTA3.9 |
| Air Intake Way | Turbo Intercooled |
| Cooling System | Closed Cooling Cycle |
| Number of Cylinders | 4 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Rated Speed | 1500 RPM |
| Alternator Specification | |
| Alternator Model | STAMFORD UCI224D |
| Alternator Type | Brushless, Self-excited, AVR |
| Phase/Wire | 3 Phase / 4 Wire |
| Rated Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
