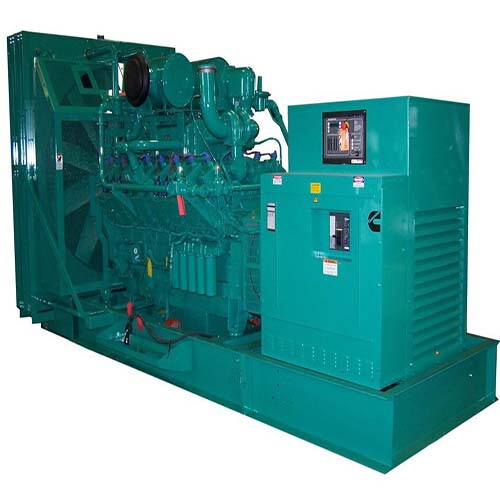

12 Cylinder LPG Generator, 660kW 825kVA, 50Hz, Cummins Engine
Key Specifications / Features
Model No.: GGS-240322-GGS-02
Hits: 19
Introducing our 12 Cylinder LPG Generator, delivering a robust power output of 660 kW (825 kVA) at 50Hz. Powered by a reliable 4-stroke Cummins engine and equipped with a Stamford brushless, self-excited alternator, this generator ensures dependable performance. With a 3-phase, 4-wire configuration and water cooling system, it is suitable for a wide range of applications. Trust in our generator for efficient and reliable power supply.
Request a quote
Tags
Detail Information
Product Name: 12 Cylinder LPG Generator
Model: GGS-825-C
Fuel: LPG
Rated Power: 660kW, 825kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins KTAA50
Engine Type: 4 Stroke, 12 Cylinder
Alternator Model: Stamford LVI634D
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-825-C |
| Frequency | 50Hz |
| Rated Power | 660kW/825kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 1188A |
| Dimension (L x W x H) (mm) | 5500 × 2100 × 2300 |
| Gross Weight (KG) | 12000 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTAA50 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 12 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Rated Speed | 1500 RPM |
| Max. Standby Power | 726kW/907.5kVA |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634D |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
