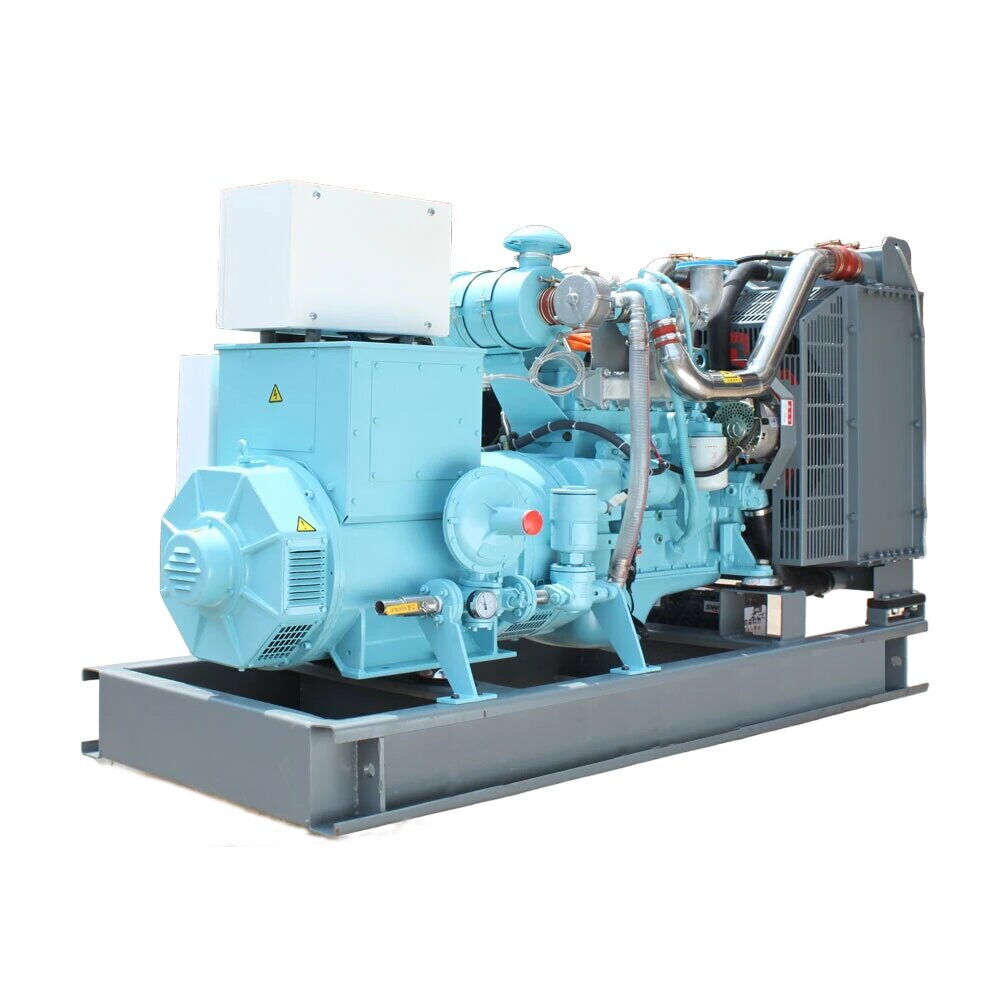

104kW 130kVA Propane Generator, Cummins, 4 Stroke, 6 Cylinder

Key Specifications / Features

Model No.: GGS-240320-NGS-05
Hits: 0
Introducing our 104kW (130kVA) Propane Generator Factory, powered by a robust Cummins engine operating at 50Hz. Offering a rated voltage of 400V or 230V, this generator features a closed-cycle cooling system and a 4-stroke, 6-cylinder engine design. Trust in our generator for reliable and efficient power generation in propane applications.
Request a quote

Detail Information


Product Name: 104kW 130kVA Propane Generator
Model: GGS-130-C
Fuel: LPG (Propane)
Frequency: 50Hz
Prime Power: 104kW, 130kVA
Rated Current: 188A
Rated Voltage: 400V, 230V
Cooling System: Closed Cycle Cooling
Engine Model: Cummins 6CTA8.3
Engine Type: 4 Stroke, 6 Cylinder
Alternator Type: Brushless, Self-excited, AVR
Phase/Wire: 3 Phase, 4 Wire


Technical Data


Generator Specification
Generator Model GGS-130-C
Frequency 50Hz
Rated Power 104kW / 130kVA
Rated Current 188A
Rated Voltage 400/230V
Fuel LPG
Dimension (L x W x H) (mm) 2400 x 1100 x 1600
Net Weight (KG) 1850
Engine Specification
Engine Model Cummins 6CTA8.3
Air Intake Way Turbo Intercooled
Cooling System Closed Cooling Cycle
Number of Cylinders 6 Cylinder
Cycle 4 Stroke
Displacement 8.3 L
Bore x Stroke 114 x 135 mm
Rated Speed 1500 RPM
Alternator Specification
Alternator Model STAMFORD UCI274E
Alternator Type Brushless, Self-excited, AVR
Phase/Wire 3 Phase / 4 Wire
Rated Power Factor 0.8
Protection Grade IP23
Insulation Class H
