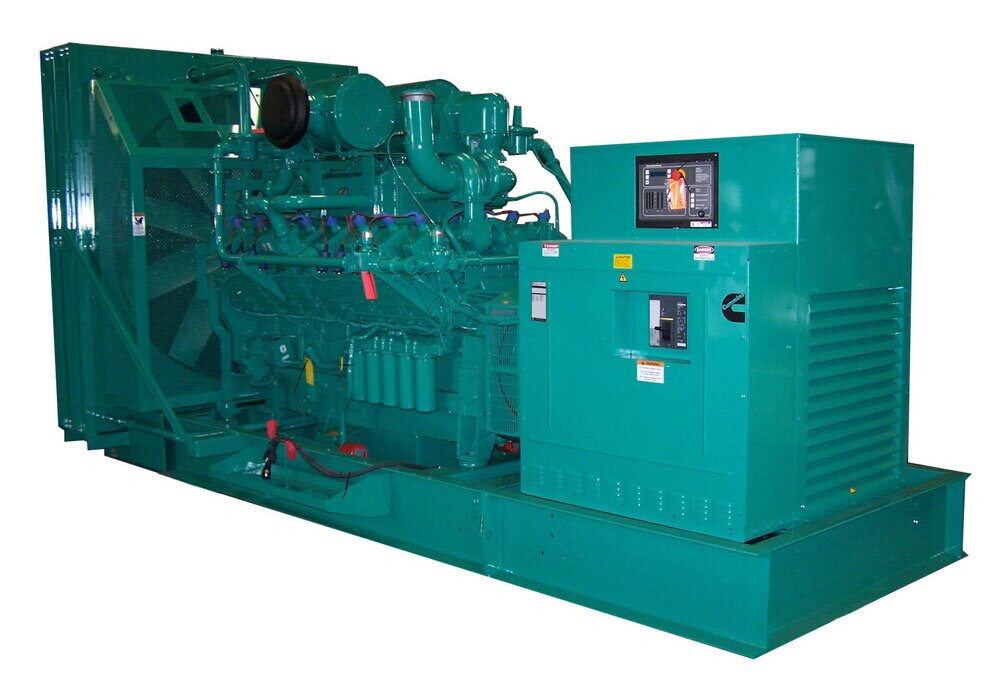

4 Stroke Natural Gas Generator, 700kW 875kVA, Cummins Engine
Key Specifications / Features
Model No.: GGS-240320-NGS-01
Hits: 8
Introducing our 4 Stroke Natural Gas Generator, featuring a robust Cummins engine, offering 700kW (875kVA) of power at 50Hz. With a closed cooling cycle ensuring optimal temperature regulation, this generator boasts a 16-cylinder engine for enhanced performance. Equipped with a brushless AVR alternator, it ensures stable and reliable power generation. Trust in our generator for efficient and dependable operation in natural gas applications.
Request a quote
Tags
Detail Information
Product Name: 4 Stroke Natural Gas Generator
Model: GGS-875-C
Fuel: Natural Gas
Frequency: 50Hz
Prime Power: 700kW, 875kVA
Rated Current: 1310A
Rated Voltage: 400V, 230V
Cooling System: Closed Cycle Cooling
Engine Model: Cummins KTAA50
Engine Type: 4 Stroke, 16 Cylinder
Alternator Type: Brushless, Self-excited, AVR
Phase/Wire: 3 Phase, 4 Wire
Technical Data
| Generator Specification | |
| Generator Model | GGS-875-C |
| Frequency | 50Hz |
| Rated Power | 700kW / 875kVA |
| Rated Current | 1310A |
| Rated Voltage | 400/230V |
| Fuel | Natural Gas |
| Dimension (L x W x H) (mm) | 5500 x 2100 x 2400 |
| Net Weight (KG) | 12000 |
| Engine Specification | |
| Engine Model | Cummins KTAA50 |
| Air Intake Way | Turbo Intercooled |
| Cooling System | Closed Cooling Cycle |
| Number of Cylinders | 16 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Rated Speed | 1500 RPM |
| Alternator Specification | |
| Alternator Model | STAMFORD LVI634D |
| Alternator Type | Brushless, Self-excited, AVR |
| Phase/Wire | 3Phase/4Wire |
| Rated Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
