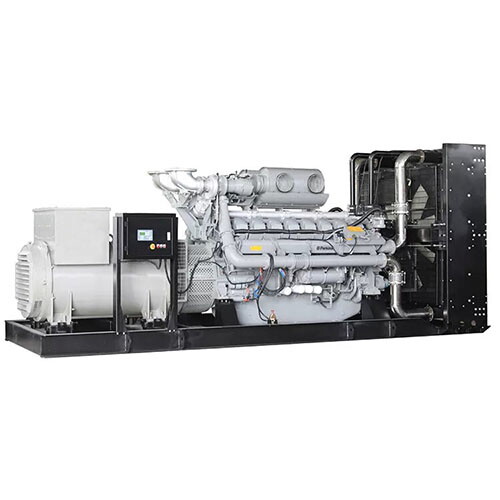

875kW Natural Gas Generator, Perkins 4016-61TRS1, 16 Cylinder
Key Specifications / Features
Model No.: GGS-240401-GGS-01
Hits: 15
The high-performance Natural Gas Generator offers a substantial rated power of 875kW and 1094kVA, leveraging the robust capabilities of its 16 Cylinder Perkins 4016-61TRS1 Engine. Engineered with closed cycle cooling technology, this generator ensures enhanced efficiency and durability for demanding applications.
Request a quote
Tags
Detail Information
Product Name: 875kW Natural Gas Generator
Model: GGS-1094-P
Frequency: 50Hz
Fuel Type: Natural Gas
Rated Power: 875kW, 1094kVA
Rated Voltage: 400V, 230V
Displacement: 61 L
Bore x Stroke: 160 x 190 mm
Compression Ratio: 12:1
Engine: Perkins 4016-61TRS1, 4 Stroke, 16 Cylinder V Type
Alternator: Stamford S6L1D-F4, Brushless, Self-excited
Other Feature: 3 Phase, Closed Cycle Cooling, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1094-P |
| Frequency | 50Hz |
| Rated Power | 875kW/1094kVA |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 5560 x 2600 x 2960 |
| Gross Weight (KG) | 11536 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4016-61TRS1 |
| Fuel Type | Natural Gas |
| Cooling System | Closed Cycle Cooling |
| Aspiration | Turbocharged |
| Number of Cylinders | 16 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 61 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 12:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | S6L1D-F4 |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
