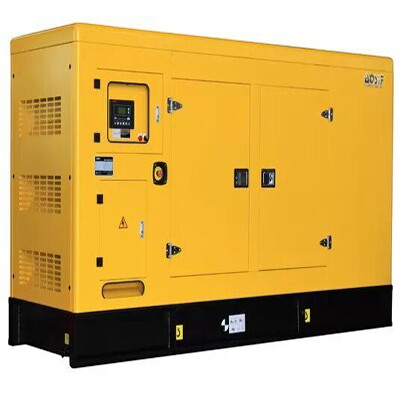

4 Stroke Diesel Generator, 30kW 36kVA, Cummins Engine, 50Hz
Key Specifications / Features
Model No.: GGS-240311-DGS-05
Hits: 16
Introducing the 4 Stroke Diesel Generator from a leading manufacturer, featuring a reliable Cummins engine. Operating at 50Hz, it delivers a robust 30kW power output (36kVA) with a voltage of 400/230V. This water-cooled generator is equipped with a durable 3-cylinder engine and a brushless alternator for efficient performance. Its 3-phase, 4-wire configuration ensures seamless compatibility with various electrical systems. Trust in this generator for dependable power generation in both residential and commercial applications.
Request a quote
Tags
Detail Information
Product Name: 4 Stroke Diesel Generator
Model: GGS-36-C
Engine Brand: Cummins
Frequency: 50Hz
Prime Power: 30kW / 36kVA
Rated Voltage: 400/230V
Engine Type: Water Cooled, 3 Cylinder, 4 Stroke
Alternator Type: Brushless, 3 Phase & 4 Wire
Net Weight: 930 KG
Dimension (L x W x H): 1800 x 750 x 1450 mm
Technical Data
| Generator Specification | |
| Generator Model | GGS-36-C |
| Frequency | 50Hz |
| Prime Power | 30kW/36kVA |
| Standby Power | 32kW/40kVA |
| Rated Voltage | 400/230V |
| Type | Open |
| Dimension (L x W x H) (mm) | 1800 x 750 x 1450 |
| Net Weight (KG) | 930 |
| Engine Specification | |
| Engine Brand | Cummins |
| Model | 4BTA3.9-G2 |
| Cooling System | Water Cooled |
| Air Intake System | Turbocharged, Water/Air DC |
| Fuel System | Cummins AD Model Fuel Pump |
| Number of Cylinders | 3 Cylinder In Line |
| Cycle | 4 Stroke |
| Starting Method | Electric Start |
| Displacement | 3.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500rpm |
| Max. Standby Power | 55KW/76HP |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Exciter Type | Brushless |
| Phase | 3 |
| Wiring Type | 3 Phase & 4 Wire |
| Protection Grade | IP23 |
| Insulation Grade | Class H |
