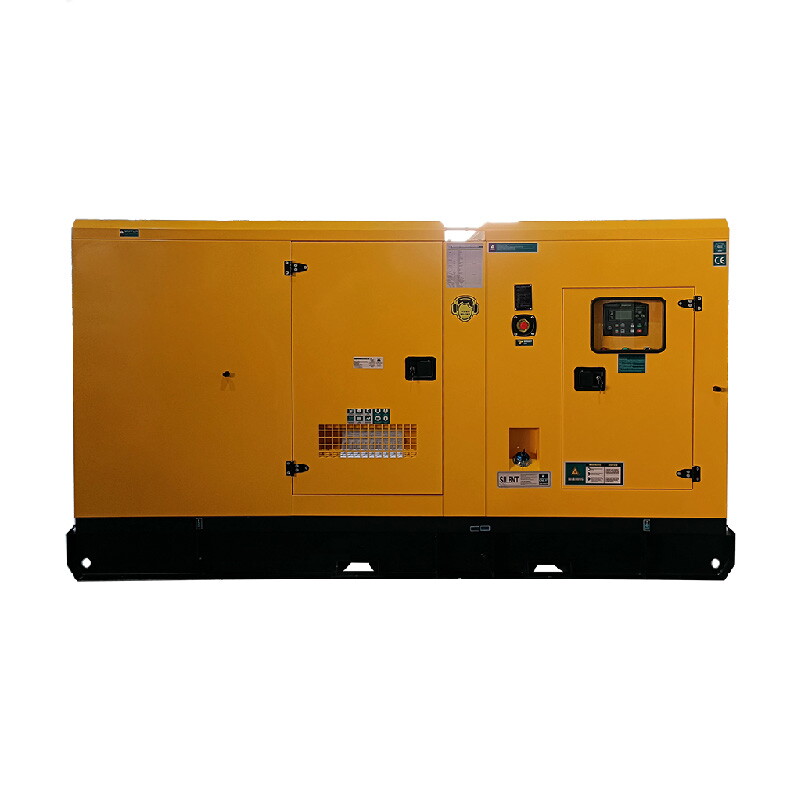

160kW Diesel Generator, 3 Phase, 4 Stroke, 6 Cylinder, 50Hz
Key Specifications / Features
Model no.: GGS-240320-DGS-01
Hits: 0
Introducing our 160kW Diesel Generator, engineered for reliable power generation. With a rating of 200kVA at 50Hz, this generator is designed for three-phase applications. Featuring a 4-stroke, 6-cylinder in-line Fawde engine, it ensures efficient operation. Equipped with a brushless, self-excited alternator and water-cooled system, it guarantees stable performance. Trust in our Diesel Generator for dependable power supply in various settings.
Request a quote
Tags
Detail Information
Product Name: 160kW Diesel Generator
Model: GGS-200-F
Frequency: 50Hz
Prime Power: 160kW, 200kVA
Rated Current: 317.6A
Rated Voltage: 400V, 230V
Cooling System: Water-cooled
Engine Model: Fawde CA6DL2-27D
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Type: Brushless, Self-excited, AVR
Number of Phase: 3 Phase
Technical Data
| Generator Specification | |
| Generator Model | GGS-200-F |
| Frequency | 50Hz |
| Prime Power | 160kW / 200kVA |
| Standby Power | 176kW / 220kVA |
| Rated Current | 317.6A |
| Rated Voltage | 400/230V |
| Dimension (L x W x H) (mm) | 3400 x 1200 x 2000 |
| Net Weight (KG) | 2600 |
| Engine Specification | |
| Engine Brand | Fawde |
| Engine Model | CA6DL2-27D |
| Prime Power | 205kW |
| Standby Power | 226kW |
| Type of Injection | Direct Injection |
| Cooling System | Water Cooled |
| Aspiration | Turbo & Intercooling |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.57 L |
| Bore x Stroke | 112 x 145 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1500 RPM |
| Starter System | 24V Electric System |
| Governor Type | Electronic |
| Alternator Specification | |
| Alternator Type | Brushless |
| Excitation system | Self-excited |
| Voltage regulator | AVR |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Poles | 4 |
| Terminals | 12 |
| Protection Grade | IP23 |
| Insulation Class | H |
