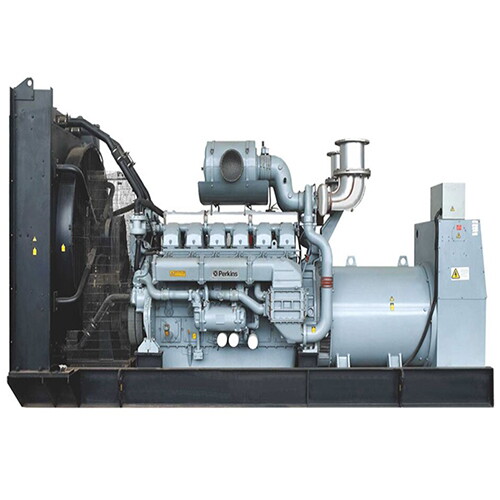

600kVA Diesel Generator, Perkins, 50Hz, 4 Stroke, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240321-DGS-03
Hits: 10
Introducing our 480kW (600kVA) Diesel Generator, designed for 50Hz operation and equipped with a Perkins engine. With a voltage of 400V, this generator features a 4-stroke, 6-cylinder in-line configuration and a Stamford alternator. It operates in three phases and is cooled through a water cooling system. Trust in our generator for reliable and efficient power generation in various applications.
Request a quote
Tags
Detail Information
Product Name: 600kVA Diesel Generator
Model: GGS-600-P
Prime Power: 480kW, 600kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine: Perkins 2806C-E18TAG1A, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford HCI544E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-600-P |
| Frequency | 50Hz |
| Prime Power | 480kW / 600kVA |
| Standby Power | 528kW / 660kVA |
| Rated Voltage | 400V (Available with custom requirements) |
| Dimension (L x W x H) (mm) | 4700 × 1900 × 2500 |
| Net Weight (KG) | 4100 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 2806C-E18TAG1A |
| Prime Power | 532kW |
| Standby Power | 583.8kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 18.13 L |
| Bore x Stroke | 145 x 183 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic / Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
