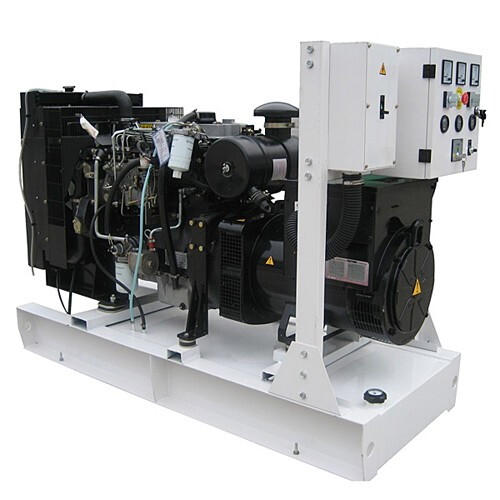

120kW Diesel Generator, Perkins 1106A-70TAG3, 50Hz, 4 Stroke
Key Specifications / Features
Model No.: GGS-240403-DGS-01
Hits: 8
Introducing our diesel generator designed for 50Hz operation, delivering prime power of 120kW and 150kVA. Powered by a robust Perkins 1106A-70TAG3 engine featuring a 6-cylinder in-line configuration, this generator ensures reliable performance for your power needs.
Request a quote
Tags
Detail Information
Product Name: 120kW Diesel Generator
Model: GGS-150-P
Frequency: 50Hz
Prime Power: 120kW, 150kVA
Standby Power: 132kW, 165kVA
Rated Voltage: 230V, 400V
Displacement: 7.01 L
Bore x Stroke: 105 x 135 mm
Compression Ratio: 16.1:1
Engine: Perkins 1106A-70TAG3, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford UCI274F, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-150-P |
| Frequency | 50Hz |
| Prime Power | 120kW/150kVA |
| Standby Power | 132kW/165kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2260 x 760 x 1600 |
| Gross Weight (KG) | 1550 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1106A-70TAG3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 7.01 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 16.1:1 |
| Rated Speed | 1500 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
