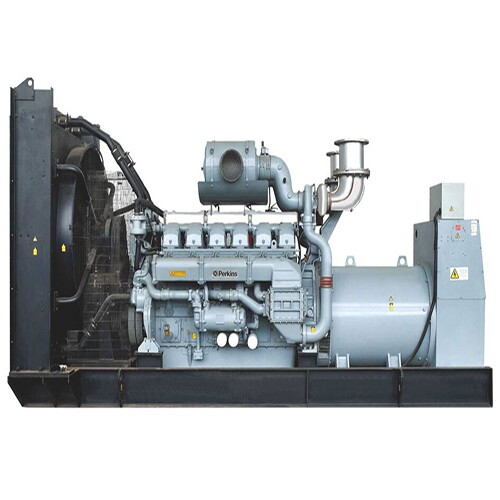

600kW Diesel Generator, Perkins Engine, 50Hz, 400V, 4 Stroke
Key Specifications / Features
Model no.: GGS-240321-DGS-05
hits: 0
Introducing our 600kW (750kVA) Diesel Generator, featuring a Perkins engine designed for 50Hz operation. With a voltage of 400V, this generator boasts a 4-stroke, 6-cylinder in-line configuration and a Stamford brushless alternator. It operates in three phases and is efficiently cooled through a water cooling system. Trust in our generator for reliable and robust power generation in various applications.
Request a quote
Tags
Detail Information
Product Name: 600kW Diesel Generator
Model: GGS-750-P
Prime Power: 600kW, 750kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine: Perkins 4006-23TAG2A, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford LVI634B, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-750-P |
| Frequency | 50Hz |
| Prime Power | 600kW/750kVA |
| Standby Power | 660kW/825kVA |
| Rated Voltage | 400V (Available with custom requirements) |
| Dimension (L x W x H) (mm) | 5600 × 2300 × 2800 |
| Net Weight (KG) | 5800 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4006-23TAG2A |
| Prime Power | 654kW |
| Standby Power | 714kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 22.92 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634B |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
