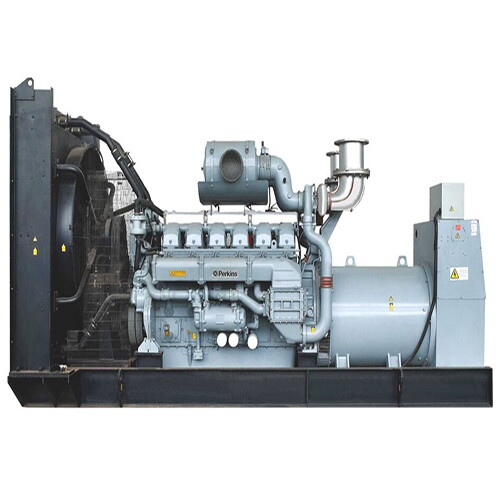

8 Cylinder Diesel Generator, 720kW 900kVA, Perkins, 4 Stroke
Key Specifications / Features
Model no.: GGS-240321-DGS-06
hits: 0
Introducing our 8 Cylinder Diesel Generator, boasting a power output of 720kW (900kVA) driven by a Perkins engine. This generator operates at 50Hz in three phases, featuring a water-cooled system for efficient performance. Equipped with a Stamford brushless, self-excited alternator, it ensures reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 8 Cylinder Diesel Generator
Model: GGS-900-P
Prime Power: 720kW, 900kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine: Perkins 4008-TAG2A, 4 Stroke, 8 Cylinder in Line
Alternator: Stamford HCI634H, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-900-P |
| Frequency | 50Hz |
| Prime Power | 720kW/900kVA |
| Standby Power | 800kW/1000kVA |
| Rated Voltage | 400V (Available with custom requirements) |
| Dimension (L x W x H) (mm) | 5600 × 2300 × 2800 |
| Net Weight (KG) | 6200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4008-TAG2A |
| Prime Power | 899kW |
| Standby Power | 985kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 8 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 30.56 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634H |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
