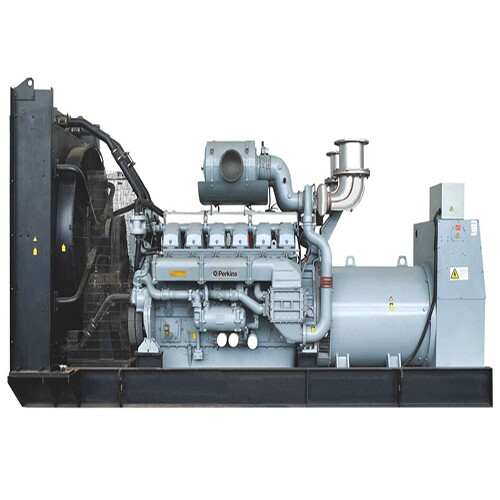

1022kVA Diesel Generator, 4 Stroke, 8 Cylinder, Water Cooled
Key Specifications / Features
Model No.: GGS-240321-DGS-07
Hits: 4
Introducing our powerful diesel generator, powered by a 4-stroke, 8-cylinder Perkins engine and featuring a Stamford alternator. This generator offers a prime power output of 1022kVA (818kW), ensuring reliable and efficient performance. Trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 1022kVA Diesel Generator
Model: GGS-1022-P
Prime Power: 818kW, 1022kVA
Frequency: 50Hz
Rated Voltage: 400V
Engine: Perkins 4008-TAG2A, 4 Stroke, 8 Cylinder in Line
Alternator: Stamford HCI634J, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-1022-P |
| Frequency | 50Hz |
| Prime Power | 818kW/1022kVA |
| Standby Power | 900kW/1125kVA |
| Rated Voltage | 400V (Available with custom requirements) |
| Dimension (L x W x H) (mm) | 5600 × 2300 × 2800 |
| Net Weight (KG) | 6200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4008-TAG2A |
| Prime Power | 899kW |
| Standby Power | 985kW |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 8 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 30.56 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
