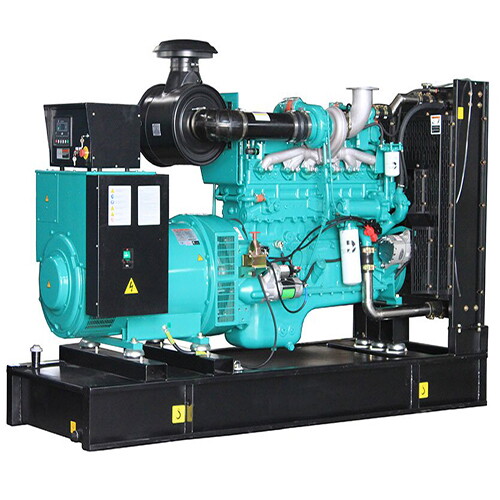

250kW Diesel Generator, 4 Stroke, 6 Cylinder, Water Cooled
Key Specifications / Features
Model no.: GGS-240322-DGS-05
hits: 0
Introducing our reliable diesel generator, offering a prime power output of 250 kW and 312.5 kVA. This generator is driven by a 4-stroke, 6-cylinder Cummins engine, ensuring robust performance. With efficient water cooling, trust in our generator for dependable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 250kW Diesel Generator
Model: GGS-312-C
Prime Power: 250kW, 312.5kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins NTA855-G1B
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444ES
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-312-C |
| Frequency | 50Hz |
| Prime Power | 250kW/312.5kVA |
| Standby Power | 280kW/350kVA |
| Rated Voltage | 400V, 230V |
| Rated Currency | 451.5A |
| Dimension (L x W x H) (mm) | 3100 × 1000 × 1750 |
| Gross Weight (KG) | 2770 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | NTA855-G1B |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 14 L |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 14.0:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444ES |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
