280kW 350kVA Diesel Generator, 50Hz, Cummins Engine, 4 Stroke
Key Specifications / Features
Model no.: GGS-240322-DGS-06
Hits: 1

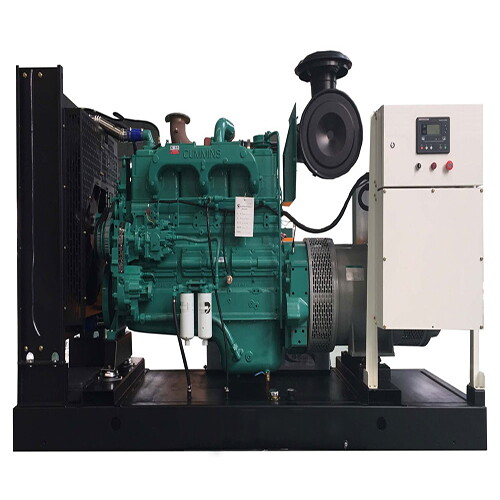

Introducing our 280 kW (350 kVA) Diesel Generator, supplied with a Cummins engine and designed for 50Hz operation. Featuring a 4-stroke, 6-cylinder in-line configuration, this generator is equipped with a brushless, self-excited alternator. Trust in our generator for reliable power supply in various applications.
Request a quote
Tags
Detail Information
Product Name: 280kW 350kVA Diesel Generator
Model: GGS-350-C
Prime Power: 280kW, 350kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Cummins NTA855-G2A
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444ES
Alternator Type: Brushless, Self-excited, AVR
Other Feature: 3 Phase 4 Wire, Water Cooled
Technical Data
| Generator Specification | |
| Generator Model | GGS-350-C |
| Frequency | 50Hz |
| Prime Power | 280kW/350kVA |
| Standby Power | 310kW/388kVA |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 3050 × 1060 × 1900 |
| Gross Weight (KG) | 2600 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | NTA855-G2A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 14 L |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 14.0:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444E |
| Excitation system | Brushless, Self-excited, AVR |
| Number of phase | 3 Phase 4 Wire |
| Power Factor | 0.8 lagging |
| Protection Grade | IP23 |
| Insulation Class | H |
