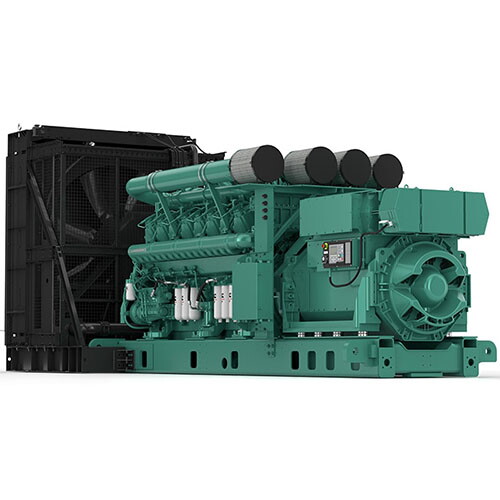

1500kVA Diesel Generator, Cummins KTA50-GS8, 50Hz, 4 Stroke
Key Specifications / Features
Model no.: GGS-240401-DGS-01
Hits: 1
Introducing a robust and high-performance diesel generator, engineered to deliver prime power of 1200kW and 1500kVA, this powerhouse features a formidable Cummins KTA50-GS8 Engine boasting 16 cylinders for unparalleled strength. Paired with the renowned Stamford PI734C Alternator, this generator ensures reliable and efficient operation to meet even the most demanding power requirements.
Request a quote
Tags
Detail Information
Product Name: 1500kVA Diesel Generator
Model: GGS-1500-C
Frequency: 50Hz
Prime Power: 1200kW, 1500kVA
Standby Power: 1320kW, 1650kVA
Rated Voltage: 230V, 400V
Displacement: 50.3 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 14.9:1
Engine: Cummins KTA50-GS8, 4 Stroke, 16 Cylinder, V Type
Alternator: Stamford PI734C, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1500-C |
| Frequency | 50Hz |
| Prime Power | 1200kW/1500kVA |
| Standby Power | 1320kW/1650kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 5430 x 2120 x 2600 |
| Gross Weight (KG) | 10600 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA50-GS8 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 16 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
