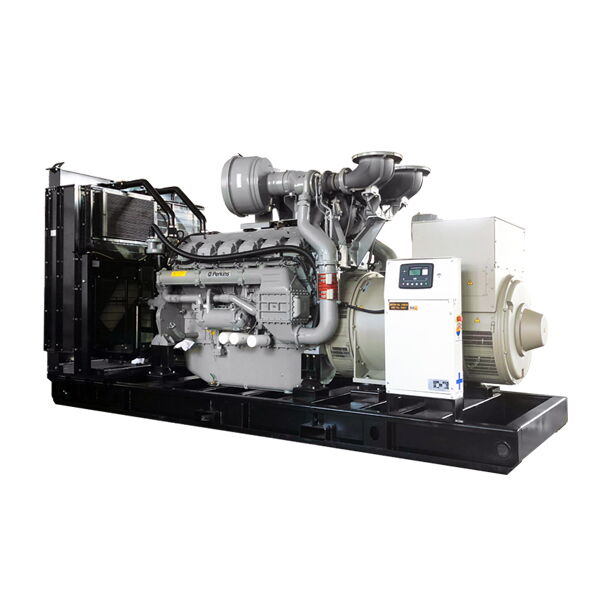

1200kW Diesel Generator, Perkins 4012-46TAG2A, 50Hz, 3 Phase
Key Specifications / Features
Model no.: GGS-240407-DGS-01
Hits: 1
This three-phase diesel generator is engineered to provide robust prime power, boasting an impressive capacity of 1200 kW and 1500 kVA. Its reliable performance is driven by the formidable 12-cylinder Perkins 4012-46TAG2A engine, renowned for its efficiency and durability. With the added benefit of a sophisticated water cooling system, this generator ensures consistent and dependable operation even in demanding conditions, making it an ideal choice for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 1200kW Diesel Generator
Model: GGS-1500-P
Frequency: 50Hz
Prime Power: 1200kW, 1500kVA
Standby Power: 1320kW, 1650kVA
Rated Voltage: 230V, 400V
Displacement: 45.842 L
Bore x Stroke: 160 x 190 mm
Compression Ratio: 13:1
Engine: Perkins 4012-46TAG2A, 4 Stroke, 12 Cylinder, V Type
Alternator: Stamford PI734C
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1500-P |
| Frequency | 50Hz |
| Prime Power | 1200kW/1500kVA |
| Standby Power | 1320kW/1650kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 5100 x 2100 x 2400 |
| Gross Weight (KG) | 10800 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 4012-46TAG2A |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 12 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 45.842 L |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
1200kW Diesel Generator Set onfiguration
This robust genset is powered by a genuine Perkins engine and features a comprehensive suite of components designed for reliability and performance:
Engine & Filters: Original Perkins engine with a heavy-duty air filter, oil filter, fuel filter, and fuel/water separator.
Alternator Options: Compatible with Stamford, Leroy Somer, Marathon, or Meccalte alternators.
Radiator: Features a large-size radiator for efficient cooling.
Vibration Isolation: Equipped with heavy-duty anti-vibration pads to reduce operational noise and enhance stability.
Base Frame: Constructed with a durable steel base frame and an 8-hour continuous working fuel tank.
Canopy: Canopy made of at least 2mm thick steel, coated with high-quality paint and processed with strict powder coating for durability.
Maintenance Access: High-quality door locks and hinges with a 180° revolving door design, providing easy access for maintenance.
Muffler: Large-scale impedance combined muffler with premium soundproofing and insulation materials to ensure a low noise level.
Battery: Comes with a high-quality maintenance-free battery and connecting cables.
Circuit Breakers: Standard MCB or MCCB from Delixi, with optional upgrades available from Chint, ABB, etc.
Control Module: Standard Smartgen HGM6120N control module with AMF function, with optional modules from Deepsea, ComAp, Datakom, or Deif.
Battery Charger & ATS Port: Includes a battery charger and ATS connection port.
Transport & Handling: Equipped with 4 lift eyes, lift pockets on the base frame, and a lifting port on the canopy for easy transportation.
This genset combines high-quality components and advanced features to deliver reliable and efficient power generation in a variety of applications.
