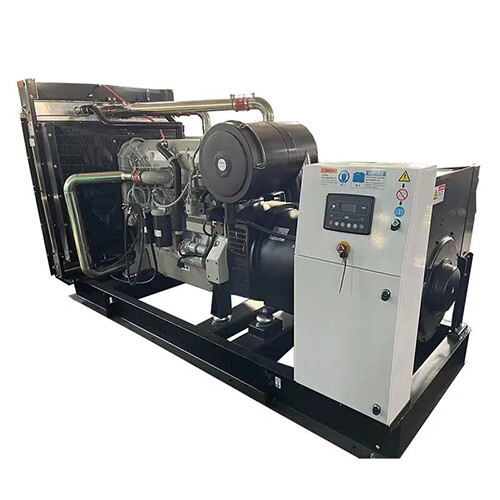

240kW Diesel Generator, Perkins 1506A-E88TAG5, Water Cooled
Key Specifications / Features
Model no.: GGS-240403-DGS-10
Hits: 4
Experience unparalleled reliability with our water-cooled diesel generator, boasting a prime power output of 240kW and 300kVA. Featuring a Perkins 1506A-E88TAG5 engine with 6 cylinders and electronic governor, this generator ensures consistent performance and efficiency, making it an ideal choice for your power needs.
Request a quote
Tags
Detail Information
Product Name: 240kW Diesel Generator
Model: GGS-300-P
Frequency: 50Hz
Prime Power: 240kW, 300kVA
Standby Power: 264kW, 330kVA
Rated Voltage: 230V, 400V
Displacement: 8.8 L
Bore x Stroke: 112 x 149 mm
Compression Ratio: 16.1:1
Engine: Perkins 1506A-E88TAG5, 4 Stroke, 6 Cylinder
Alternator: Stamford HCI444D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-300-P |
| Frequency | 50Hz |
| Prime Power | 240kW/300kVA |
| Standby Power | 264kW/330kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2800 x 1010 x 1750 |
| Gross Weight (KG) | 2200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1506A-E88TAG5 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Aftercooled |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 8.8 L |
| Bore x Stroke | 112 x 149 mm |
| Compression Ratio | 16.1:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
