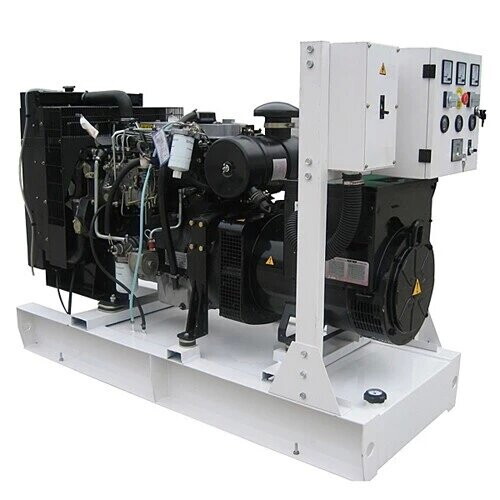

500kW Diesel Generator, Perkins 2806A-E18TAG2, Water Cooled
Key Specifications / Features
Model No.: GGS-240407-DGS-03
Hits: 22
Presenting our water-cooled diesel generator designed for 60Hz operation, delivering an impressive prime power output of 500 kW and 625 kVA. This powerhouse is outfitted with a reliable 6-cylinder Perkins 2806A-E18TAG2 engine, ensuring optimal performance and durability for your power needs across various applications.
Request a quote
Tags
Detail Information
Product Name: 500kW Diesel Generator
Model: GGS-625-P
Frequency: 60Hz
Prime Power: 500kW, 625kVA
Standby Power: 550kW, 688kVA
Rated Voltage: 127V, 220V
Displacement: 18.13 L
Bore x Stroke: 145 x 183 mm
Compression Ratio: 14.5:1
Engine: Perkins 2806A-E18TAG2, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford HCI544E
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-625-P |
| Frequency | 60Hz |
| Prime Power | 500kW/625kVA |
| Standby Power | 550kW/688kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 3340 x 1550 x 2250 |
| Gross Weight (KG) | 4800 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 2806A-E18TAG2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 18.13 L |
| Bore x Stroke | 145 x 183 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
