500kVA Diesel Generator, 6 Cylinder, Perkins 2506C-E15TAG1
Key Specifications / Features
Model No.: GGS-240407-DGS-04
Hits: 16

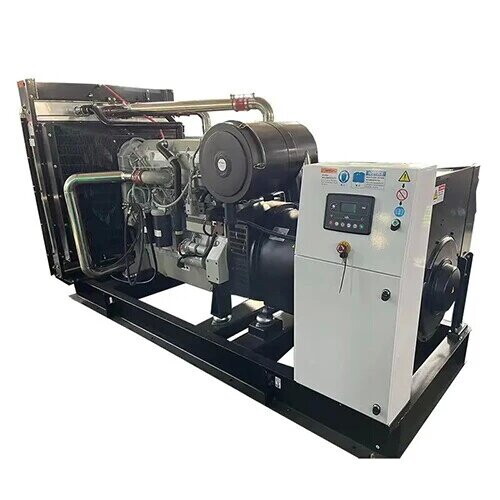

Introducing our 60Hz 6-cylinder diesel generator, offering a robust prime power of 400 kW and 500 kVA. Powered by the dependable Perkins 2506C-E15TAG1 engine, this generator is equipped with water cooling and an electronic governor for optimal performance and efficiency in various industrial applications.
Request a quote
Tags
Detail Information
Product Name: 500kVA Diesel Generator
Model: GGS-500-P
Frequency: 60Hz
Prime Power: 400kW, 500kVA
Standby Power: 440kW, 550kVA
Rated Voltage: 127V, 220V
Displacement: 15 L
Bore x Stroke: 137 x 171 mm
Compression Ratio: 16:1
Engine: Perkins 2506C-E15TAG1, 4 Stroke, 6 Cylinder, Vertical in Line
Alternator: Stamford HCI544C
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-500-P |
| Frequency | 60Hz |
| Prime Power | 400kW/500kVA |
| Standby Power | 440kW/550kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 3120 x 1160 x 2150 |
| Gross Weight (KG) | 3900 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 2506C-E15TAG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 15 L |
| Bore x Stroke | 137 x 171 mm |
| Compression Ratio | 16:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
