122kW Diesel Generator, 60Hz, Perkins 1106A-70TG1, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240328-DGS-04
Hits: 6

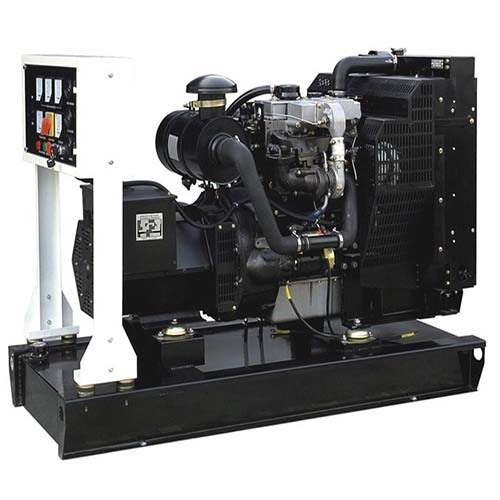

Introducing our high-performance 6-cylinder diesel generator, engineered to deliver a prime power output of 122kW and 140kVA. Powered by the renowned Perkins 1106A-70TG1 engine and paired with a Stamford UC274E alternator, this generator ensures dependable and efficient operation for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 122kW Diesel Generator
Model: GGS-140-P
Frequency: 60Hz
Prime Power: 122kW, 140kVA
Standby Power: 135kW, 155kVA
Rated Voltage: 133V, 230V
Displacement: 7.01 L
Bore x Stroke: 105 x 135 mm
Compression Ratio: 18.2:1
Engine: Perkins 1106A-70TG1, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford UC274E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Mechanical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-140-P |
| Frequency | 60Hz |
| Prime Power | 122kW/140kVA |
| Standby Power | 135kW/155kVA |
| Rated Voltage | 133/230V |
| Dimension (L x W x H) (mm) | 1860 x 750 x 1200 |
| Gross Weight (KG) | 978 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1106A-70TG1 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged, air charge cooled |
| Number of Cylinders | 6 Cylinder Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 7.01 L |
| Bore x Stroke | 105 x 135 mm |
| Compression Ratio | 18.2:1 |
| Rated Speed | 1800 RPM |
| Governor type | Mechanical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UC274E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
