262kW Diesel Generator, 60Hz, Perkins 1056A-E88TAG5, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240329-DGS-02
Hits: 13

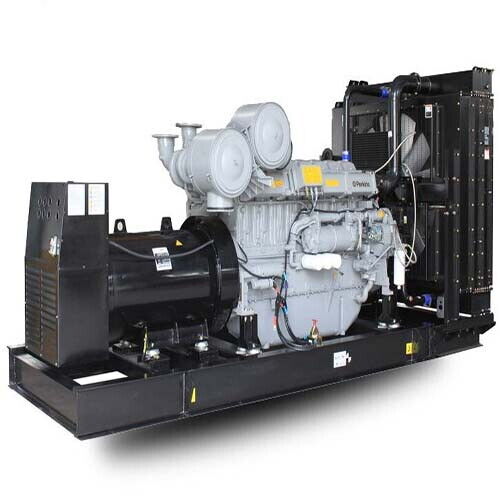

Experience dependable power supply with our 6-cylinder diesel generator, operating at 60Hz and offering a prime power of 262kW and 328kVA. Driven by the Perkins 1056A-E88TAG5 engine and coupled with a Stamford HCI444D alternator, equipped with electronic governor for precise control, ensuring uninterrupted performance for your critical operations.
Request a quote
Tags
Detail Information
Product Name: 262kW Diesel Generator
Model: GGS-328-P
Frequency: 60Hz
Prime Power: 262kW, 328kVA
Standby Power: 300kW, 375kVA
Rated Voltage: 127V, 220V
Displacement: 8.8 L
Bore x Stroke: 112 x 149 mm
Compression Ratio: 13.1:1
Engine: Perkins 1056A-E88TAG5, 4 Stroke, 6 Cylinder Vertical in Line
Alternator: Stamford HCI444D, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-328-P |
| Frequency | 60Hz |
| Prime Power | 262kW/328kVA |
| Standby Power | 300kW/375kVA |
| Rated Voltage | 220V, 127V |
| Dimension (L x W x H) (mm) | 2800 x 1010 x 1750 |
| Gross Weight (KG) | 2200 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1056A-E88TAG5 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Number of Cylinders | 6 Cylinder, Vertical in Line |
| Cycle | 4 Stroke |
| Displacement | 8.8 L |
| Bore x Stroke | 112 x 149 mm |
| Compression Ratio | 13.1:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444D |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
