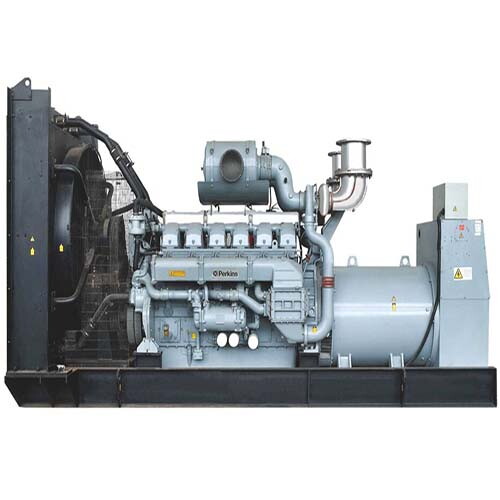

180kW 225kVA Diesel Generator, Perkins 1306A-E87TAG4, 3 Phase
Key Specifications / Features
Model no.: GGS-240325-DGS-06
Hits: 0
Introduce our diesel generator, producing a robust 180 kW (225 kVA) power. This generator features a 3-phase configuration, powered by the Perkins 1306A-E87TAG4 engine and equipped with a Stamford UCI274J alternator. With a 4-stroke, 6-cylinder in-line design and water cooling system, our generator ensures reliable performance in various applications.
Request a quote
Tags
Detail Information
Product Name: 180kW 225kVA Diesel Generator
Model: GGS-225-P
Prime Power: 180kW, 225kVA
Frequency: 50Hz
Rated Voltage: 400V, 230V
Engine Model: Perkins 1306A-E87TAG4
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford UCI274J
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-225-P |
| Frequency | 50Hz |
| Prime Power | 180kW/225kVA |
| Standby Power | 200kW/250kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2800 × 1200 × 1800 |
| Gross Weight (KG) | 1700 |
| Engine Specification | |
| Engine Brand | Perkins |
| Engine Model | 1306A-E87TAG4 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Air to Water Charge Cooled |
| Number of Cylinders | 6 Cylinder in Line |
| Combustion System | Direct Injection |
| Cycle | 4 Stroke |
| Displacement | 8.7 L |
| Bore x Stroke | 116 x 135 mm |
| Compression Ratio | 16.9:1 |
| Rated Speed | 1500 RPM |
| Start Mode | Electric |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274J |
| Excitation system | Single Bearing, Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |

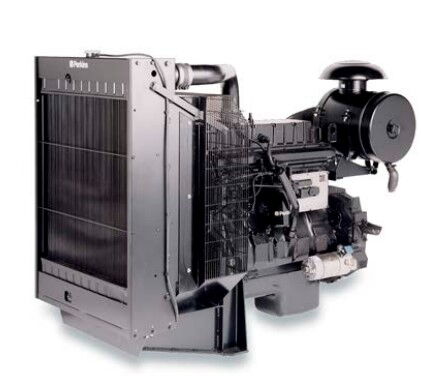

1306A-E87TAG4 Diesel Engine
The 1306A-E87TAG4 engine is a turbocharged and air-to-air charge cooled unit designed for high performance in the electrical power generation market. It features hydraulically actuated electronically controlled unit injectors (HEUI), ensuring reliable, quiet, and economical operation with quick starting and fast response.
1. Outstanding Performance Features
Hydraulically Actuated Injectors: High-pressure fuel injection delivers consistent and reliable high performance.
Electronic Engine Management: Enables precise fuel metering and injection timing for reliable low-temperature starting, superb fuel economy, and close governing.
2. Quiet and Clean Operation
Robust Design: Minimizes noise transmission, while helically cut gears provide quiet power transfer to auxiliaries.
Optimized Combustion: Forced induction and electronic control reduce combustion noise, ensuring virtually smoke-free operation and compliance with emissions regulations.
3. Durability and Reliability
Balanced Crankshaft: Induction-hardened for smooth performance and minimized bearing loads.
Long-Lasting Components: Oil-cooled pistons and advanced valve mechanisms reduce wear and extend engine life.
4. Dependable Performance
Enhanced Cooling System: Directs coolant effectively to key components, while a high-efficiency oil cooler maintains optimal temperatures for reliability.
Safety Mechanisms: Electronic shutdown options and fault warning codes ensure protection during operation.
5. Convenient Maintenance
Proactive Diagnostics: Electronic diagnostics facilitate maintenance planning, with oil and filter changes scheduled every 450 hours to reduce downtime.
Comprehensive Support Network: Backed by Perkins’ global network of distributors and dealers for ongoing service and assistance.
The 1306A-E87TAG4 engine is the perfect choice for applications requiring robust, efficient, and clean power, ensuring optimal performance in a variety of demanding environments.
