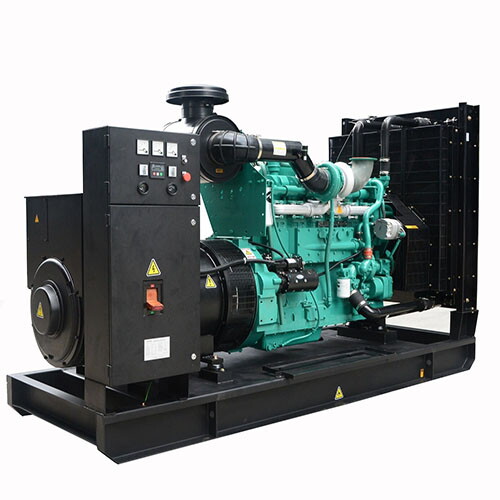

180kW Diesel Generator, Cummins 6LTAA8.9-G2, 50Hz, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240403-DGS-07
Hits: 10
Introducing our diesel generator, delivering a prime power output of 180kW and 225kVA. Powered by a robust 6-cylinder Cummins 6LTAA8.9-G2 engine, this generator boasts reliable performance and is equipped with a water cooling system for efficient operation. With an electronic governor ensuring precise control, it's suitable for a wide range of applications where dependable power is essential.
Request a quote
Tags
Detail Information
Product Name: 180kW Diesel Generator
Model: GGS-225-C
Frequency: 50Hz
Prime Power: 180kW, 225kVA
Standby Power: 200kW, 250kVA
Rated Voltage: 230V, 400V
Displacement: 8.9 L
Bore x Stroke: 114 x 135 mm
Compression Ratio: 16.6:1
Engine: Cummins 6LTAA8.9-G2, 4 Stroke, 6 Cylinder
Alternator: Stamford UCDI274J, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-225-C |
| Frequency | 50Hz |
| Prime Power | 180kW/225kVA |
| Standby Power | 200kW/250kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2570 x 1000 x 1650 |
| Gross Weight (KG) | 2000 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6LTAA8.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder |
| Cycle | 4 Stroke |
| Displacement | 8.9 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCDI274J |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
