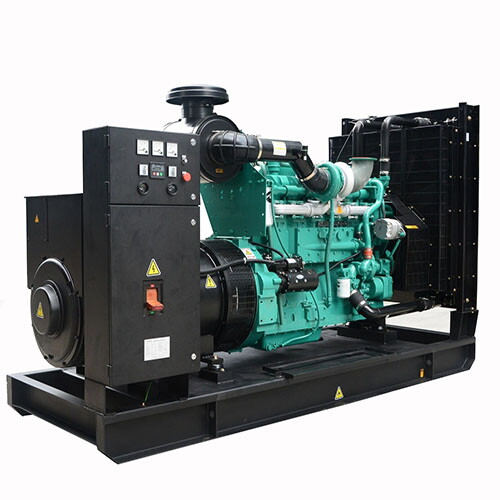

144kW Diesel Generator, 50Hz, Cummins 6CTA8.3-G2, 6 Cylinder
Key Specifications / Features
Model no.: GGS-240401-DGS-07
Hits: 0
Introducing our advanced 4-stroke diesel generator, delivering a prime power output of 144kW and 180kVA. Powered by a reliable Cummins 6CTA8.3-G2 engine and paired with a Stamford HCI274G alternator, this generator ensures robust performance and dependable power supply. Designed for versatility and efficiency, it meets the demands of various applications with ease.
Request a quote
Tags
Detail Information
Product Name: 144kW Diesel Generator
Model: GGS-180-C
Frequency: 50Hz
Prime Power: 144kW, 180kVA
Standby Power: 160kW, 200kVA
Rated Voltage: 230V, 400V
Displacement: 8.3 L
Bore x Stroke: 114 x 135 mm
Compression Ratio: 17.3:1
Engine: Cummins 6CTA8.3-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford HCI274G, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-180-C |
| Frequency | 50Hz |
| Prime Power | 144kW/180kVA |
| Standby Power | 160kW/200kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 2260 x 840 x 1560 |
| Gross Weight (KG) | 1650 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6CTA8.3-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 8.3 L |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI274G |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
144kW Diesel Generator
Experience reliable power generation with the 144kW Cummins water-cooled generator, featuring the robust 6CTA8.3-G2 engine and a brushless alternator. This diesel generator set is designed for optimal performance and durability, making it ideal for various applications.
Key Features:
Engine: Cummins 6CTA8.3-G2, known for its efficiency and reliability.
Alternator: power brushless alternator, engineered using Stamford technologies, ensuring high performance and quality with parts equivalent to Stamford alternators.
Cooling System: Original Cummins radiator for effective temperature management.
Control System: Deepsea controller for seamless operation and monitoring.
Electrical Components: Includes CHINT breaker, batteries, and a battery charger for comprehensive functionality.
Structure: Sturdy base frame with an integrated fuel tank and anti-vibration damper to minimize operational noise and enhance stability.
Choose the 144kW generator for a reliable and efficient power solution tailored to meet your needs.
