520kW 650kVA Diesel Generator, Cummins QSK19-G4, Water Cooled
Key Specifications / Features
Model no.: GGS-240401-DGS-06
Hits: 1

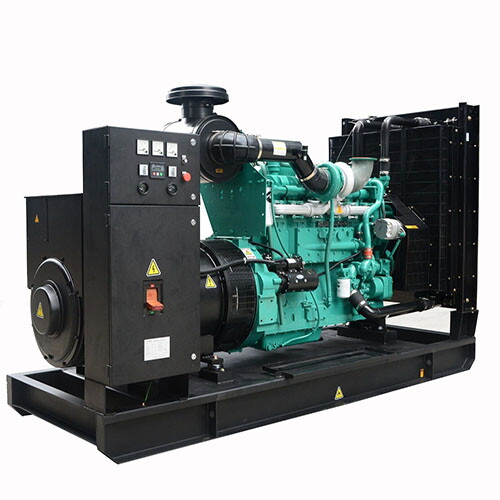

Presenting our cutting-edge 3-phase diesel generator with a remarkable power output of 520kW and 650kVA. Featuring a reliable Cummins QSK19-G4 6-cylinder engine and equipped with a Stamford HCI544F alternator, this generator ensures robust performance and dependable power supply. With water cooling and an electronic governor, it's designed to meet the demanding requirements of various applications, providing efficiency and reliability when you need it most.
Request a quote
Tags
Detail Information
Product Name: 520kW 650kVA Diesel Generator
Model: GGS-650-C
Frequency: 50Hz
Prime Power: 520kW, 650kVA
Standby Power: 572kW, 715kVA
Rated Voltage: 230V, 400V
Displacement: 18.9 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 15:1
Engine: Cummins QSK19-G4, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford HCI544F, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-650-C |
| Frequency | 50Hz |
| Prime Power | 520kW/650kVA |
| Standby Power | 572kW/715kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 3600 x 1550 x 2300 |
| Gross Weight (KG) | 4650 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | QSK19-G4 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 18.9 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 15:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
