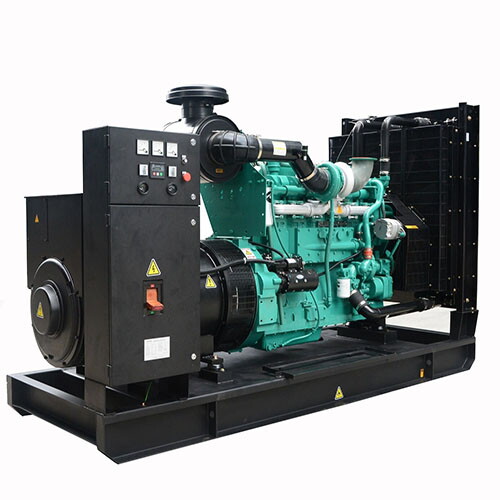

600kW Diesel Generator, 3 Phase, Cummins KTA38-G2, 4 Stroke
Key Specifications / Features
Model no.: GGS-240401-DGS-05
hits: 0
Introducing our advanced 3-phase diesel generator, boasting a prime power output of 600kW and 750kVA. Driven by a robust Cummins KTA38-G2 engine and featuring water cooling and an electronic governor, this generator ensures reliable and efficient operation, making it suitable for a wide range of industrial and commercial applications where dependable power is essential.
Request a quote
Tags
Detail Information
Product Name: 600kW Diesel Generator
Model: GGS-750-C
Frequency: 50Hz
Prime Power: 600kW, 750kVA
Standby Power: 660kW, 825kVA
Rated Voltage: 230V, 400V
Displacement: 38 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 14.5:1
Engine: Cummins KTA38-G2, 4 Stroke, 12 Cylinder, V Type
Alternator: Stamford LVI634B, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-750-C |
| Frequency | 50Hz |
| Prime Power | 600kW/750kVA |
| Standby Power | 660kW/825kVA |
| Rated Voltage | 230V, 400V |
| Dimension (L x W x H) (mm) | 4200 x 1700 x 2300 |
| Gross Weight (KG) | 7450 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged and Aftercooled |
| Number of Cylinders | 12 Cylinder, V Type |
| Cycle | 4 Stroke |
| Displacement | 38 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 14.5:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | LVI634B |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
