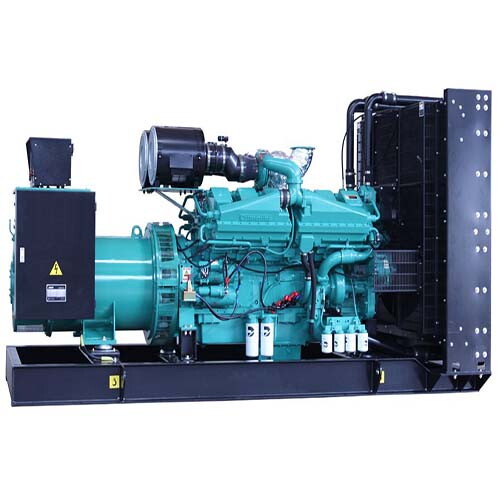

274kW Diesel Generator, Cummins 6ZTAA13-G3, 3 Phase, 4 Stroke
Key Specifications / Features
Model No.: GGS-240326-DGS-14
Hits: 7
Introducing our advanced 4-stroke diesel generator, featuring the potent Cummins 6ZTAA13-G3 engine and coupled with a Stamford HCI444ES alternator. This robust combination delivers a prime power output of 274kW (343kVA), ensuring reliable and efficient electricity generation for your needs.
Request a quote
Tags
Detail Information
Product Name: 274kW Diesel Generator
Frequency: 60Hz
Model: GGS-343-C
Prime Power: 274kW, 343kVA
Rated Voltage: 220V, 127V
Engine Model: Cummins 6ZTAA13-G3
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444ES
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
Frequency: 60Hz
Model: GGS-343-C
Prime Power: 274kW, 343kVA
Rated Voltage: 220V, 127V
Engine Model: Cummins 6ZTAA13-G3
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444ES
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-343-C |
| Frequency | 60Hz |
| Prime Power | 274kW/343kVA |
| Standby Power | 300kW/375kVA |
| Rated Voltage | 220V, 127V |
| Dimension (L x W x H) (mm) | 3110 × 1150 × 1700 |
| Gross Weight (KG) | 2700 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6ZTAA13-G3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 13 L |
| Bore x Stroke | 130 x 163 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444ES |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
