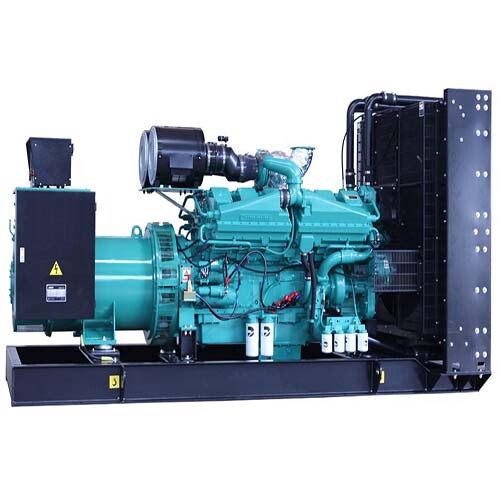

620kW 775kVA Diesel Generator, Cummins KT38-G, 12 Cylinder
Key Specifications / Features
Model no.: GGS-240326-DGS-13
hits: 0
Presenting our robust 620kW (775kVA) diesel generator, powered by the formidable Cummins KT38-G engine, renowned for its reliability and efficiency. Featuring a 4-stroke, 12-cylinder V-type configuration and paired with a Stamford HCI544FS brushless alternator, it guarantees consistent and dependable power supply for a variety of applications.
Request a quote
Tags
Detail Information
Product Name: 620kW 775kVA Diesel Generator
Frequency: 60Hz
Model: GGS-775-C
Prime Power: 620kW, 775kVA
Rated Voltage: 240V
Engine Model: Cummins KT38-G
Engine Type: 4 Stroke, 12 Cylinder V Type
Alternator Model: Stamford HCI544FS
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-775-C |
| Frequency | 60Hz |
| Prime Power | 620kW/775kVA |
| Standby Power | 682kW/853kVA |
| Rated Voltage | 240V |
| Dimension (L x W x H) (mm) | 2341 × 1360 × 1653 |
| Gross Weight (KG) | 3954 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KT38-G |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 12 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 37.8 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 15.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI544FS |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
