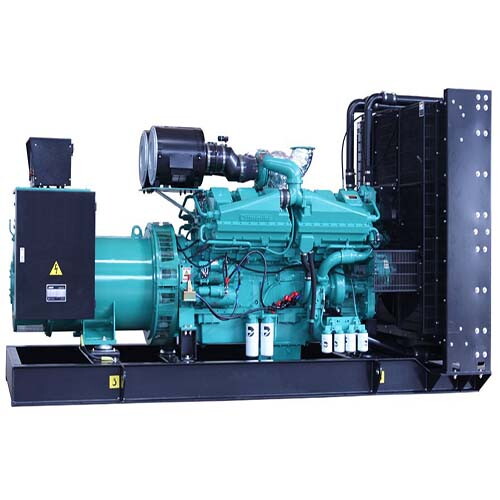

410kW Diesel Generator, Cummins KTA19-G3, Water Cooled, 60Hz
Key Specifications / Features
Model no.: GGS-240326-DGS-12
hits: 0
Introducing our high-performance 60Hz diesel generator, featuring a formidable 6-cylinder Cummins KTA19-G3 engine, renowned for its reliability and power. With a prime power output of 410kW (513kVA) and efficient water-cooling system, it ensures consistent and dependable power supply for a wide range of applications.
Request a quote
Tags
Detail Information
Product Name: 410kW Diesel Generator
Frequency: 60Hz
Model: GGS-513-C
Prime Power: 410kW, 513kVA
Rated Voltage: 240V
Engine Model: Cummins KTA19-G3
Engine Type: 4 Stroke, 6 Cylinder in Line
Alternator Model: Stamford HCI444F
Alternator Type: Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electrical Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-513-C |
| Frequency | 60Hz |
| Prime Power | 410kW/513kVA |
| Standby Power | 450kW/563kVA |
| Rated Voltage | 240V |
| Dimension (L x W x H) (mm) | 3475 × 1250 × 1920 |
| Gross Weight (KG) | 3650 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA19-G3 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 18.9 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | HCI444F |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
