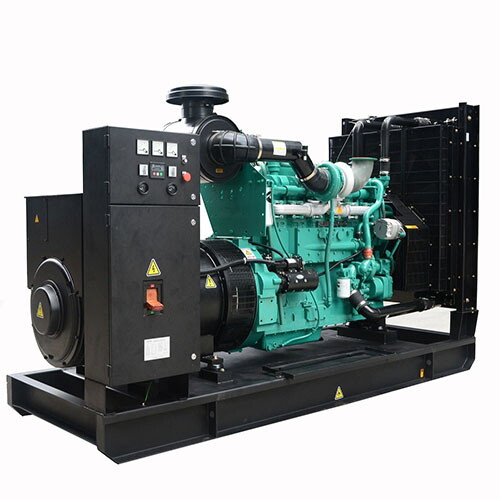

84kW Diesel Generator, Cummins 6BT5.9-G2, 60Hz, Water Cooled
Key Specifications / Features
Model No.: GGS-240402-DGS-02
Hits: 10
The water-cooled diesel generator, designed for 60Hz operation, boasts a prime power output of 84kW and 105kVA, leveraging the reliable Cummins 6BT5.9-G2 engine in conjunction with a Stamford UCI274C alternator to ensure consistent and efficient power generation.
Request a quote
Tags
Detail Information
Product Name: 84kW Diesel Generator
Model: GGS-105-C
Frequency: 60Hz
Prime Power: 84kW, 105kVA
Standby Power: 92kW, 115kVA
Rated Voltage: 220V, 127V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 17.3:1
Engine: Cummins 6BT5.9-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford UCI274C, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-105-C |
| Frequency | 60Hz |
| Prime Power | 84kW/105kVA |
| Standby Power | 92kW/115kVA |
| Rated Voltage | 220V, 127V |
| Dimension (L x W x H) (mm) | 2195 x 913 x 1413 |
| Gross Weight (KG) | 1266 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BT5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electrical |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274C |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
