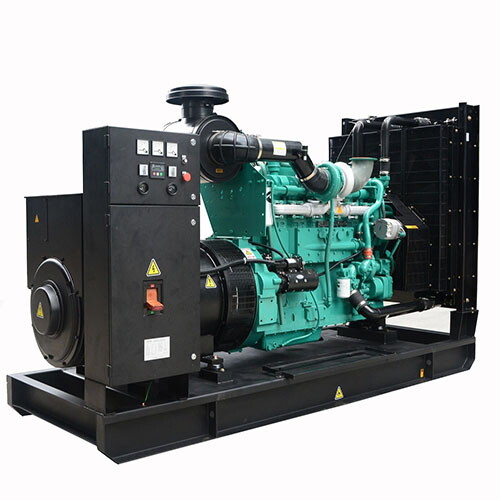

145kVA Diesel Generator, Cummins 6BTAA5.9-G2, Water Cooled
Key Specifications / Features
Model no.: GGS-240402-DGS-10
Hits: 2
Designed for reliable performance, this 60Hz diesel generator boasts a Cummins 6BTAA5.9-G2 engine, renowned for its durability and efficiency. With 4-stroke operation and a 6-cylinder inline configuration, it offers a prime power output of 116kW and 145kVA. Equipped with a Stamford UCI274E alternator and a water cooling system, this generator ensures continuous and efficient power supply across various applications.
Request a quote
Tags
Detail Information
Product Name: 145kVA Diesel Generator
Model: GGS-145-C
Frequency: 60Hz
Prime Power: 116kW, 145kVA
Standby Power: 128kW, 160kVA
Rated Voltage: 127V, 220V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 17.5:1
Engine: Cummins 6BTAA5.9-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford UCI274E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-145-C |
| Frequency | 60Hz |
| Prime Power | 116kW/145kVA |
| Standby Power | 128kW/160kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 2350 x 830 x 1700 |
| Weight | 1360 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
