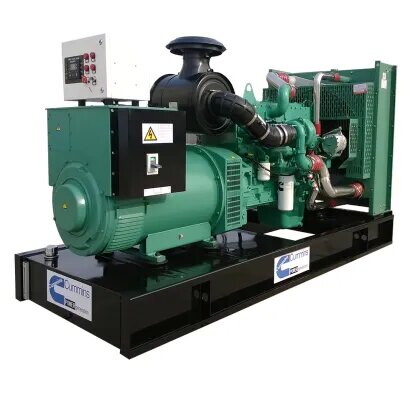

105kW 131kVA Diesel Generator, Cummins 6BTA5.9-G2, 6 Cylinder
Key Specifications / Features
Model No.: GGS-240402-DGS-09
Hits: 20
Operating at 60Hz, this diesel generator is driven by a robust 6-cylinder Cummins 6BTA5.9-G2 engine, known for its reliability and efficiency. With a prime power output of 105kW and 131kVA, this generator is equipped with a water cooling system, ensuring optimal performance even under heavy loads and extended operation.
Request a quote
Tags
Detail Information
Product Name: 105kW 131kVA Diesel Generator
Model: GGS-131-C
Frequency: 60Hz
Prime Power: 105kW, 131kVA
Standby Power: 115kW, 145kVA
Rated Voltage: 127V, 220V
Displacement: 5.9 L
Bore x Stroke: 102 x 120 mm
Compression Ratio: 17.5:1
Engine: Cummins 6BTA5.9-G2, 4 Stroke, 6 Cylinder in Line
Alternator: Stamford UCI274E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-131-C |
| Frequency | 60Hz |
| Prime Power | 105kW/131kVA |
| Standby Power | 115kW/145kVA |
| Rated Voltage | 127V, 220V |
| Dimension (L x W x H) (mm) | 2300 x 820 x 1450 |
| Weight | 1250 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | 6BTA5.9-G2 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged/Aftercooled |
| Number of Cylinders | 6 Cylinder in Line |
| Cycle | 4 Stroke |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1800 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
