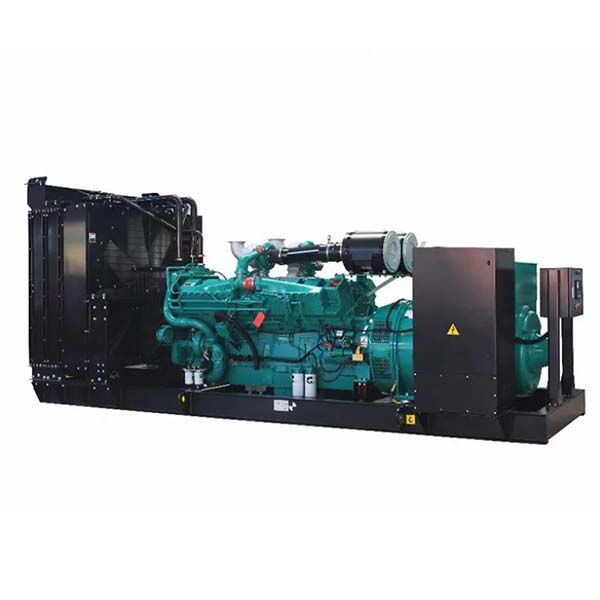

1400kW Diesel Generator, Cummins KTA50-G15, Stamford PI734E
Key Specifications / Features
Model no.: GGS-240402-DGS-08
Hits: 0
Delivering exceptional power, this 3-phase diesel generator, operating at 50Hz, is equipped with a Cummins KTA50-G15 engine boasting a 4-stroke, 16-cylinder V-type configuration. Combined with a Stamford PI734E brushless alternator, it offers a formidable output of 1400kW, ensuring reliable performance in various industrial settings.
Request a quote
Tags
Detail Information
Product Name: 1400kW Diesel Generator
Model: GGS-1400-C
Frequency: 50Hz
Prime Power: 1400kW
Standby Power: 1500kW
Rated Voltage: 400V, 230V
Displacement: 50.3 L
Bore x Stroke: 159 x 159 mm
Compression Ratio: 13.9:1

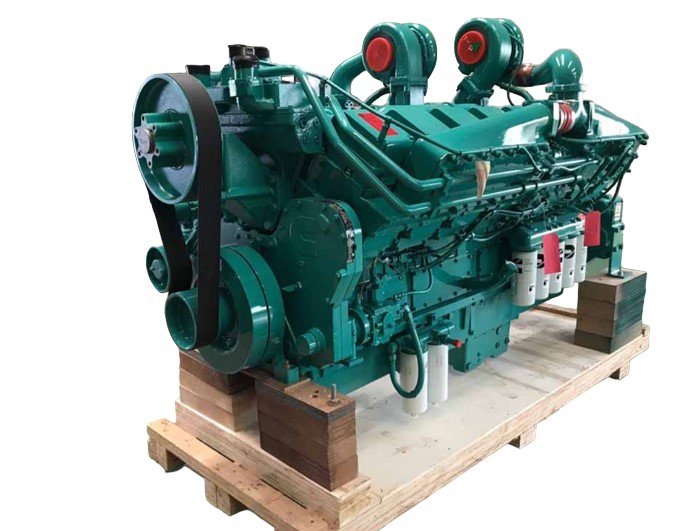

Engine: Cummins KTA50-G15, 4 Stroke, 16 Cylinder V Type
Alternator: Stamford PI734E, Brushless, Self-excited
Other Feature: 3 Phase, Water Cooled, Electronic Governor
Technical Data
| Generator Specification | |
| Generator Model | GGS-1400-C |
| Frequency | 50Hz |
| Prime Power | 1400kW |
| Standby Power | 1500kW |
| Rated Voltage | 400V, 230V |
| Dimension (L x W x H) (mm) | 6100 x 2138 x 2557 |
| Weight | 13795 |
| Engine Specification | |
| Engine Brand | Cummins |
| Engine Model | KTA50-G15 |
| Cooling System | Water Cooled |
| Aspiration | Turbocharged & Intercooled |
| Number of Cylinders | 16 Cylinder V Type |
| Cycle | 4 Stroke |
| Displacement | 50.3 L |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500 RPM |
| Governor type | Electronic |
| Alternator Specification | |
| Alternator Brand | Stamford |
| Alternator Model | PI734E |
| Excitation system | Brushless, Self-excited |
| Number of phase | 3 Phase |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Insulation Class | H |
1400kW Diesel Generator Main Features
The Cummins KTA50 generator set is a fully integrated power generation system designed for optimal performance, reliability, and versatility across various applications, including stationary standby, prime power, and continuous duty.
Engine: Equipped with a rugged Cummins heavy-duty 4-cycle industrial diesel engine, known for its reliability, low emissions, and quick response to load changes.
Permanent Magnet Generator (PMG): Provides enhanced motor starting and fault-clearing capabilities, ensuring reliable operation under various conditions.
Alternator: Features several size options for selectable motor starting capability. The alternator includes low reactance 2/3 pitch windings, low waveform distortion for non-linear loads, fault-clearing short-circuit capability, and class F or H insulation for durability and efficiency.
Control System: Includes the PowerCommand® electronic control system for comprehensive integration. It offers remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentry™ protection, output metering, and auto-shutdown capabilities.
Cooling System: Comes with a standard integral set-mounted radiator system, designed and tested for rated ambient temperatures. This simplifies facility design requirements for heat rejection.
Enclosures: Optional weather-protective and sound-attenuated enclosures are available to enhance durability and reduce noise.
Warranty and Service: Supported by a comprehensive warranty and a global network of distributors for reliable service and support.
